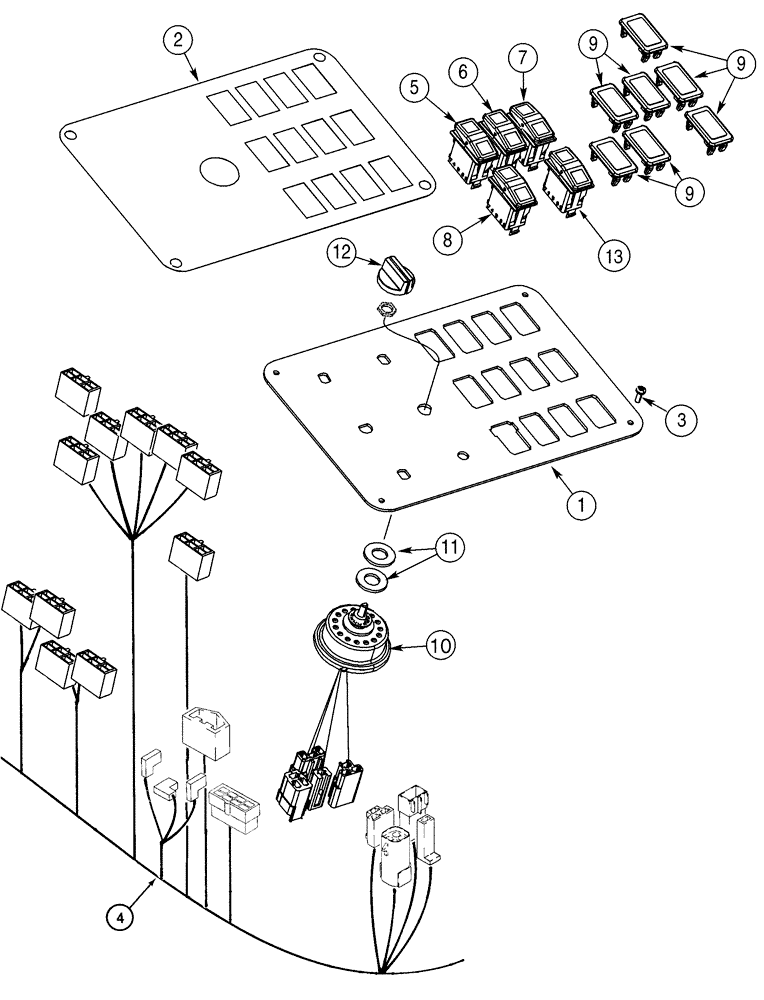

Запчасти Case 521D (04-05) - PANEL, CONTROL (WITH CANOPY) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH CANOPY

1шт.

1

197377A1

PANEL

Control

1шт.

2

283426A1

DECAL

Canopy Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

4

380072A3

HARNESS

Cab, Main

1шт.

5

374421A4

SWITCH

Rocker, Declutch

1шт.

6

374422A2

SWITCH

Rocker, Detent

1шт.

7

374427A2

SWITCH

Rocker, Serial Range: Return-Travel

1шт.

8

374431A2

SWITCH

Rocker, Trans, Auto

1шт.

9

86000535

PLUG,1.427" x .62", Plastic

Cover, Switch Opening

7шт.

10

1994716C1

LIGHT SWITCH

Lamp

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

12

1994720C1

KNOB

Control

1шт.

13

400834A1

SWITCH

Rocker, Transmission Enable

1шт.
