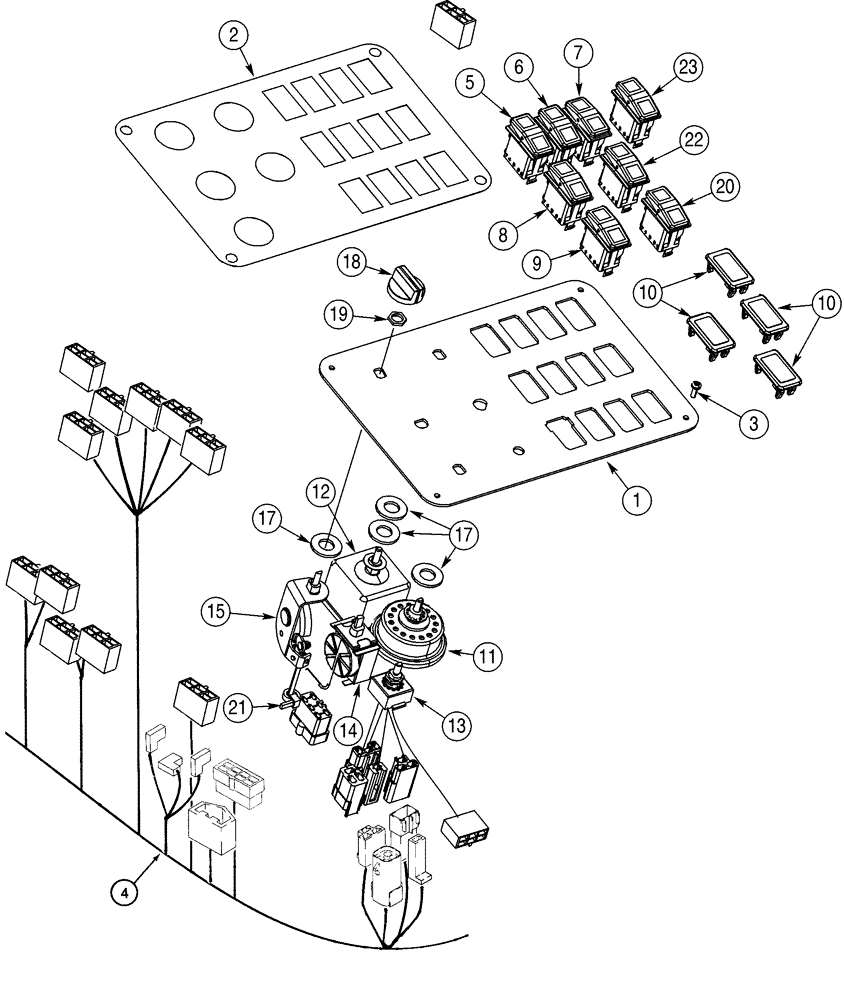

Запчасти Case 521D (04-04) - PANEL, CONTROL (WITH CAB) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH CAB

1шт.

1

197377A1

PANEL

Control

1шт.

2

283423A1

DECAL

Cab Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

4шт.

4

380072A3

HARNESS

Cab, Main

1шт.

5

374421A4

SWITCH

Rocker, Declutch

1шт.

6

374422A2

SWITCH

Rocker, Detent

1шт.

7

374427A2

SWITCH

Rocker, Return To Travel

1шт.

8

374431A2

SWITCH

Rocker, Trans, Auto

1шт.

9

374429A2

WINDSHIELD WIPER SWI

Rocker, Rear Wiper and Washer

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

Cover, Switch Opening

4-6шт.

11

1994716C1

LIGHT SWITCH

Lamp

1шт.

12

197952A1

SWITCH

Front Windshield Wiper

1шт.

13

92100C2

SWITCH

Blower Motor

1шт.

14

A187954

SWITCH

SWITCH - thermostat

1шт.

250742A1

ELECTRIC CABLE

Incl. Ref 15, 16

1шт.

15

1954651C2

CONTROL

1шт.

16

250739A1

CABLE,510mm L

1шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

5шт.

18

1994720C1

KNOB

Control

5шт.

19

109311H

JAM NUT

7/16 NF

1шт.

20

400834A1

SWITCH

Rocker, Transmission

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

22

374425A2

SWITCH

Rocker, Ride Control; If Used

1шт.

23

382375A2

SWITCH

Rocker, Fan Reversing; If Used

1шт.
