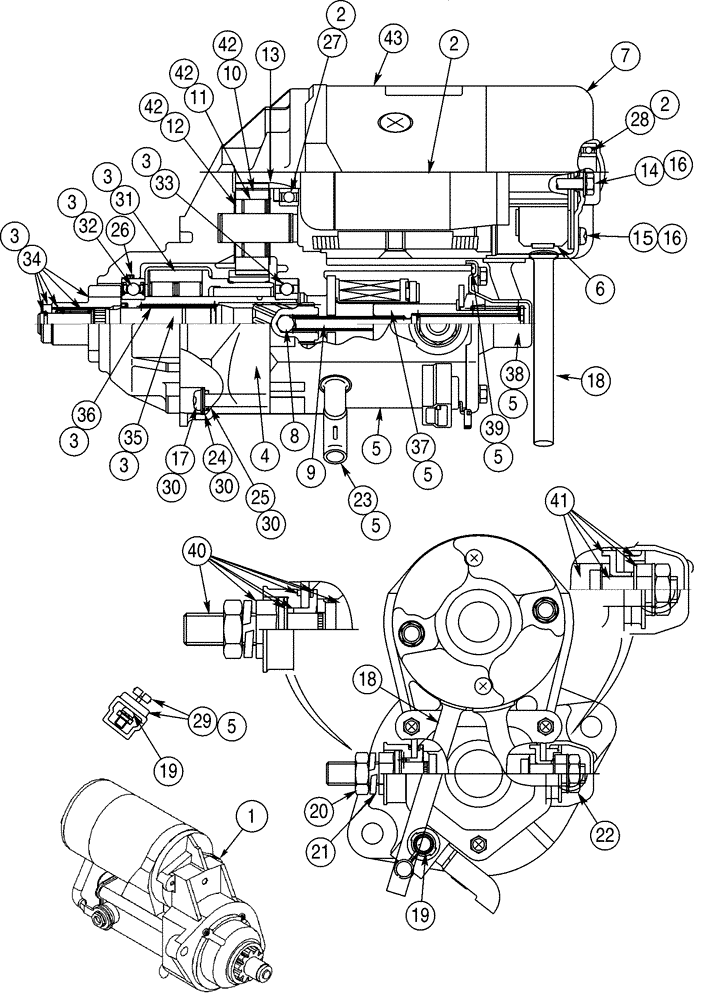

Запчасти Case 521D (04-03) - STARTER (04) - ELECTRICAL SYSTEMS

1

370226A1

STARTING MOTOR,24V, 4.5kW

24V; Incl. Ref 2 - 43

1шт.

1

370226A1R

REMAN-STARTER,24V, 4.5kW

REMANUFACTURED STARTING MOTOR

1шт.

1

370226A1C

CORE-STARTER,24V, 4.5kW

Return Number

1шт.

2

407453A1

STARTING MOTOR

ARMATURE ASSY; Incl. Ref 27, 28

1шт.

3

407455A1

CLUTCH

ASSEMBLY; Incl. Ref 31 - 36

1шт.

4

332474A1

COVER

Housing

1шт.

5

407456A1

SWITCH

Magnetic; Incl. Ref 23, 29, 37 - 39

1шт.

6

407457A1

HOLDER

Brush

1шт.

7

401106A1

FRAME

1шт.

8

211-1011

BALL,11/32" Dia

3/4; 24,CRS

1шт.

9

A47232

SPRING

2-13/16

1шт.

10

A47233

GEAR

1шт.

11

A47235

ROLLER BEARING

5шт.

12

A47236

RETAINER

1шт.

13

141360A1

WASHER

1шт.

14

332467A1

BOLT

Flange, M6 x 181

2шт.

15

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

2шт.

16

407459A1

KIT

Incl. Ref 14, 15

2шт.

17

332475A1

BOLT

Flange

3шт.

18

258883A1

BUSHING

1шт.

19

401126A1

SCREW,M5 x 8mm, W/ LW

1шт.

20

829-1412

NUT,M12, Cl 10.9

1шт.

21

892-11012

LOCK WASHER,M12

1шт.

22

332468A1

NUT

M10

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

3шт.

25

332476A1

O-RING

3шт.

26

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

27

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

1шт.

28

1981572C1

BALL BEARING

1шт.

29

NSS

NOT SOLD SEPARAT

Bolt

1шт.

30

A47230

BOLT

Incl. Ref 17, 24, 25

3шт.

31

407461A1

STARTING MOTOR

CLUTCH KIT

1шт.

32

407462A1

STARTING MOTOR

BALL BEARING

1шт.

33

407463A1

STARTING MOTOR

BALL BEARING

1шт.

34

407464A1

STARTING MOTOR

GEAR KIT

1шт.

35

407465A1

STARTING MOTOR

SHAFT

1шт.

36

407466A1

STARTING MOTOR

COMPRESSION SPRING

1шт.

37

NSS

NOT SOLD SEPARAT

Plunger

1шт.

38

NSS

NOT SOLD SEPARAT

Cover, Solenoid

1шт.

39

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

40

258869A1

MULTIPOLE CONNECTOR

Terminal

1шт.

41

258871A1

SERVICE KIT

Terminal

1шт.

42

407470A1

KIT

Incl. Ref 10 - 12

1шт.
