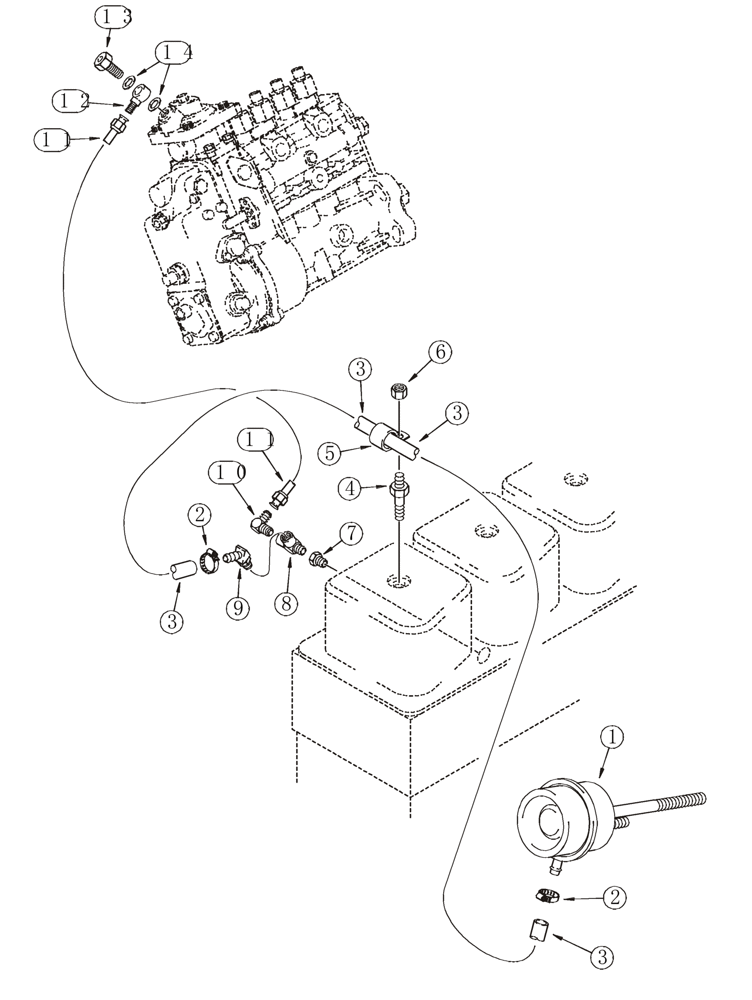

Запчасти Case 521D (03-07) - ANEROID AND WASTEGATE SYSTEM (03) - FUEL SYSTEM

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

J537561

ACTUATOR

No Longer Used; Order J594012

1шт.

1a

J594012

ACTUATOR

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

No. 4

2шт.

3

J920199

HOSE,385.00 mm

1шт.

4

J920344

FLANGE BOLT

M8

1шт.

5

J920348

CLIP,ELECTRICAL

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

221-87

REDUCER,1/2" NPT x 1/8" NPT

1шт.

8

J282406

TEE

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow

1шт.

10

217-505

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1/4 PT

1шт.

11

J934602

TUBE,6.35 mm OD x 110 mm L

1шт.

12

J919644

FITTING

1шт.

13

J903035

BANJO BOLT

M12 x 24

1шт.

14

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.
