Запчасти Case 521D (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

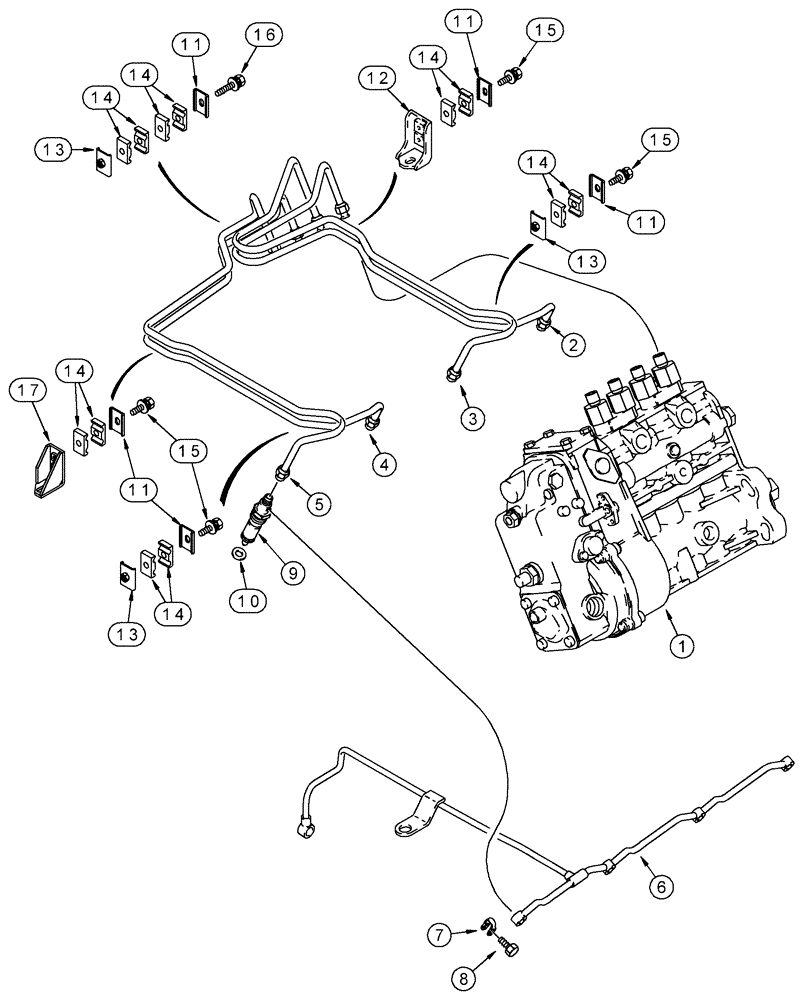

Схема запчастей Case 521D - (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM
15
8
7
17
12
14
14
10
13
9
11
14
11
15
14
5
16
13
14
1
11
6
3
15
13
4
11
14
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

J936164

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 03-08

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J932160

FUEL TUBE,750 mm L

No. 4

1шт.

6

J927633

TUBE

1шт.

7

J903380

SEAL

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

4шт.

9

J937507

INJECTOR ASSY.

Nozzle; See Figure 03-09

4шт.

J937507R

REMAN-INJECT NOZZLE

521D,Before S/N JEE0135500

4шт.

J937507C

CORE-NOZZLE, INJECT

Return Number

1шт.

J937507R

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE 521D,Before S/N JEE0135500

4шт.

J937507C

CORE-NOZZLE, INJECT

Return Number

1шт.

10

J906659

SEAL

7 mm

4шт.

11

CURJ904711

CLAMP

5шт.

12

J282942

BRACKET

1шт.

13

J917717

BRACE

3шт.

14

J917746

CLAMP

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

1шт.

17

J919086

BRACKET

1шт.

Выбрано товаров: 22
