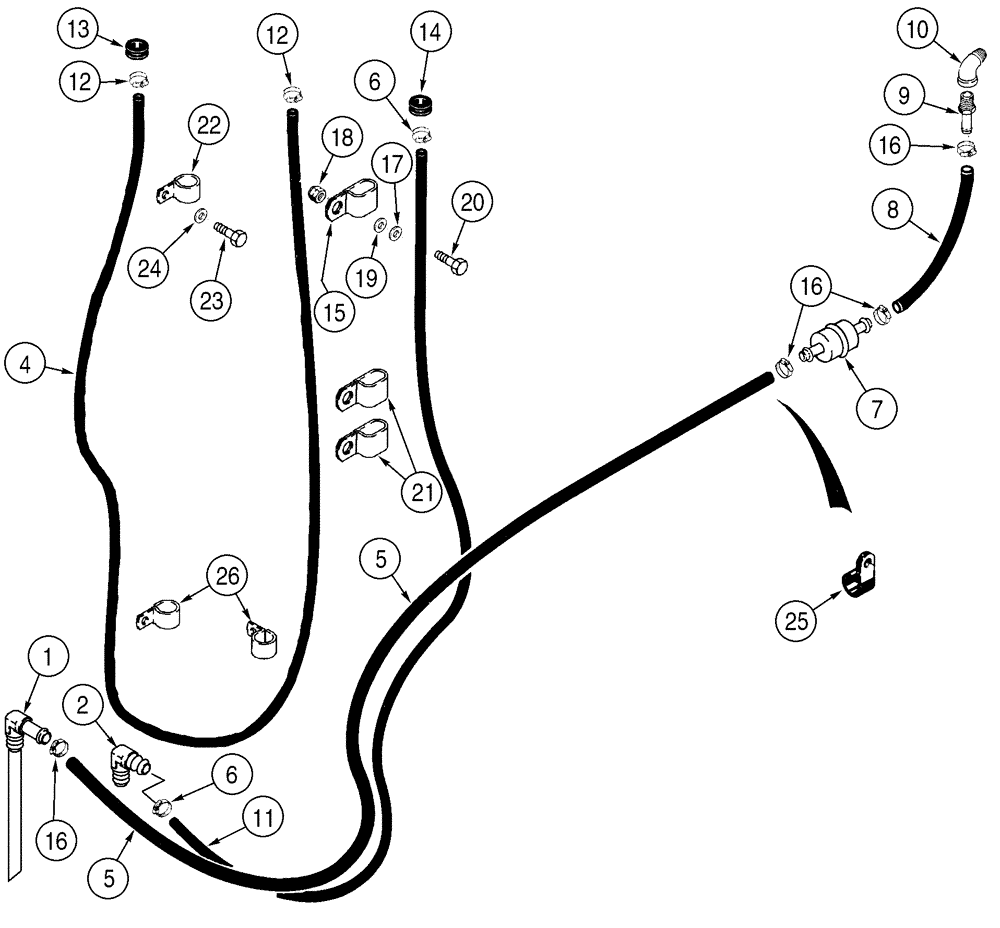

Запчасти Case 521D (03-03) - FUEL LINES - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

401606A1

FITTING

Fuel Tank

1шт.

2

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

3

217-103

COCK, DRAIN

1/4" PT; Not Illustrated

1шт.

4

398869A1

FUEL HOSE,9.53 mm ID x 2470.00 mm

Cut from 32-012

1шт.

5

368222A1

HOSE,7.90 mm ID x 3327.40 mm

991 mm (39 in); Cut from 32-080TI

1шт.

6

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

7

194199A1

FUEL FILTER

In-Line

1шт.

8

31-3084

HOSE,5.00"

127 mm (5 in); Cut From 32-080TI

1шт.

9

217-229

FITTING,1/2" Hose X 1/4" NPTF Beaded

1/2 stem x 1/4 PT

1шт.

10

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

11

226615A1

FUEL HOSE

1422 mm (56 in); Return; Cut From 32-080TI

1шт.

12

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

13

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

14

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

15

L101181

CLAMP,0.75" D Clamping pipes x 2

2шт.

16

214-1408

HOSE CLAMP,11.2mm - 19.8mm

4шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.

18

833-40408

NUT,M8, U

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

21

L101181

CLAMP,0.75" D Clamping pipes x 2

Use Existing Hardware

1шт.

22

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

23

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

24

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

25

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Use Existing Hardware

1шт.

26

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

Use Existing Hardware

2шт.
