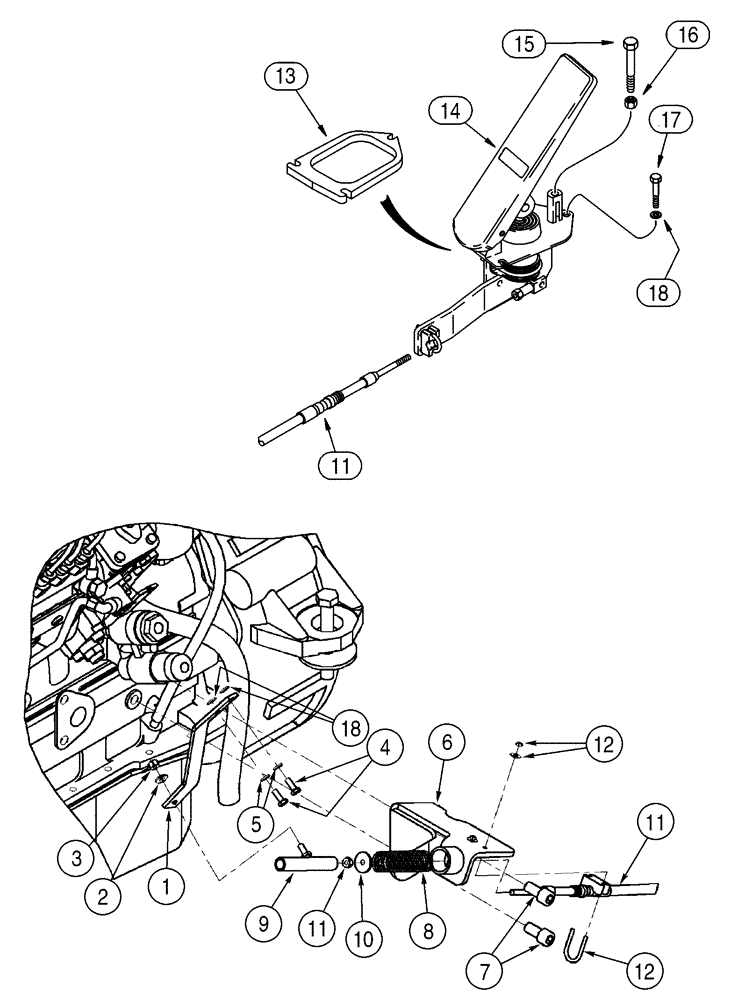

Запчасти Case 521D (03-01) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

407723A1

ARM

Bracket

1шт.

2

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

3

231-4644

LOCK NUT,1/4"-28, GB

1шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

407331A1

BRACKET

1шт.

7

864-12025

HEX SOC SCREW,M12 x 25mm, Cl 8.8

M12 x 25

2шт.

8

D136113

SPRING

1шт.

9

225619A1

BALL JOINT

1шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

11

366147A1

CABLE,2850mm L

Includes Hardware

1шт.

12

259529A1

CLAMP BRACKET

Includes Hardware

1шт.

13

234124A2

PLATE

1шт.

14

295157A1

PEDAL ASSY.

See Figure 03-02

1шт.

15

627-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9, Full Thd

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

3шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
