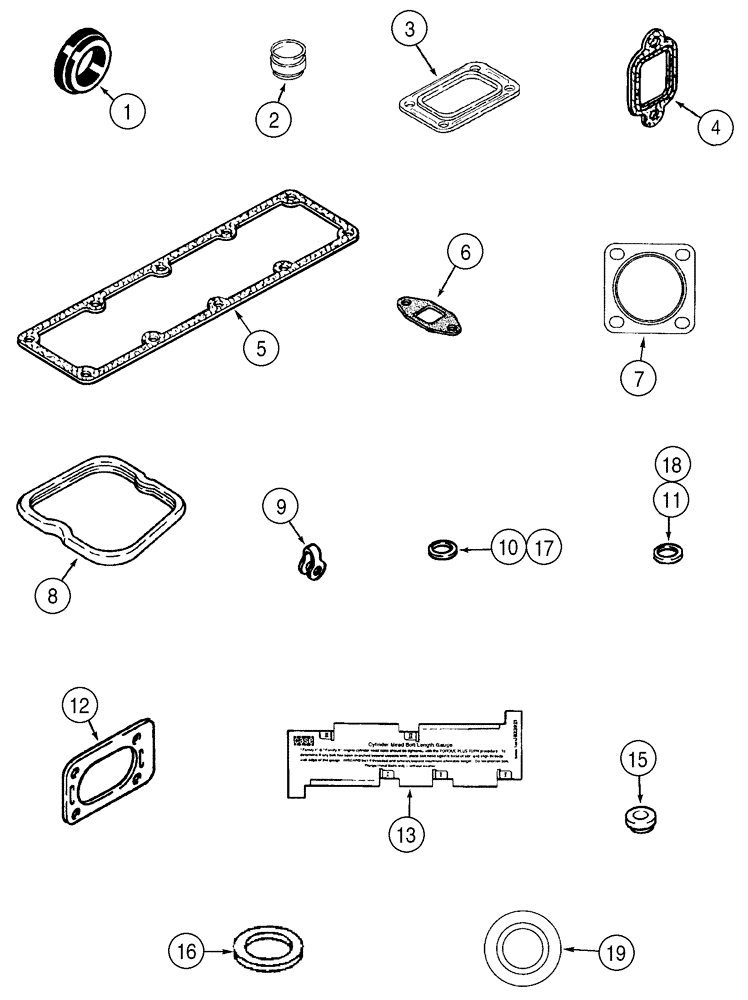

Запчасти Case 521D (02-28) - GASKET KIT, VALVE GRIND (02) - ENGINE

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE VALVE GRIND GASKET KITS

1шт.

A77975

GASKET KIT

Incl. Ref 1 - 15

1шт.

1

J923331

GASKET

See Figure 02-21

1шт.

2

J921640

SEAL

See Figure 02-22

8шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-15

1шт.

4

J927154

GASKET,0.38mm Thk

See Figure 02-15

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 02-15

1шт.

6

J937706

GASKET,0.79mm Thk

See Figure 02-15

1шт.

7

J912220

GASKET,0.4mm Thk

Not Used In This Application

1шт.

8

J930906

GASKET

See Figure 02-21

4шт.

9

J903380

SEAL

See Figure 03-05

4шт.

10

J930324

SEAL

0,5 mm; See Figure 03-09

4шт.

10

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm; Not Used In This Application

4шт.

10

J906659

SEAL

7 mm; See Figure 03-05

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-09

4шт.

12

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

13

J823921

GAUGE

Not Used In This Application

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-21

6шт.

16

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

See Figure 02-14

1шт.

17

J900808

SEAL

Not Used In This Application

4шт.

18

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Used In This Application

4шт.

19

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Figure 03-06

2шт.
