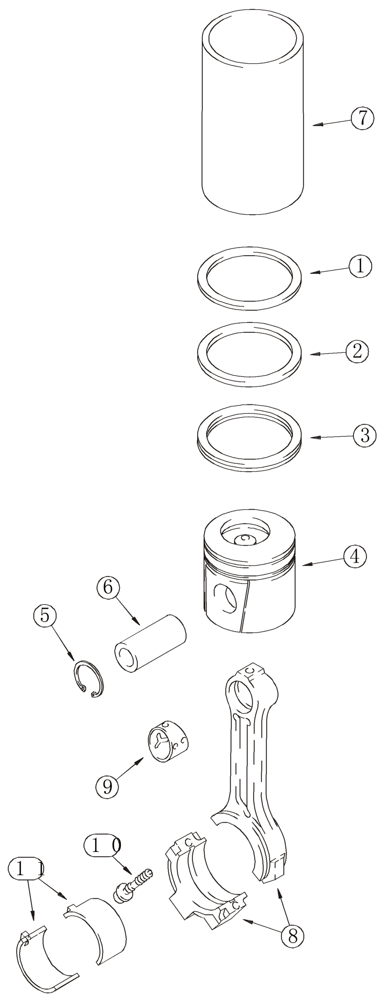

Запчасти Case 521D (02-27) - PISTONS - CONNECTING RODS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
4T-390 EMISSIONS CERTIFIED ENGINE
1шт.
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
Standard; Includes J802746, Ref 1 - 5
4шт.
J802746
PISTON RING SET
Incl. Ref 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
Piston, Standard
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
J802422
PISTON RING SET
0,5 mm; Incl. Ref 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
Piston; Oversize 0,5 mm
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
J802765
PISTON & RINGS KIT
1,0 mm Oversize; Includes J802423, Ref 1 - 5
4шт.
J802423
PISTON RING SET
1,0 mm; Incl. Ref 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Top
1шт.
2
NSS
NOT SOLD SEPARAT
Ring, Middle
1шт.
3
NSS
NOT SOLD SEPARAT
Ring, Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
Piston; Oversize 1,0 mm
1шт.
5
J920691
SPECIAL RING
2шт.
6
J934047
PIN,40mm OD x 82.68mm L
1шт.
7
J904166
SLEEVE
Use With J802747
1шт.
REF
INSTRUCTION
CONNECTING ROD
1шт.
J942581
ROD, CONNECTING
Incl. Ref 8 - 10
1шт.
JR942581
REMAN-CONNECTING ROD
Reman for New PN J942581
1шт.
JC901569
CORE-ROD CONNECTING
Core-Connecting Rod, Return Number
1шт.
84145405R
REMAN-CONNECTING ROD
521D BEFORE S/N JEE0135500, Reman For New PN J942581
1шт.
84145405C
CORE-ROD CONNECTING
Return Number
1шт.
8
NSS
NOT SOLD SEPARAT
Rod
1шт.
9
J941476
BUSHING
1шт.
10
J900919
BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9
M11 x 59
2шт.
11
A77465
BEARING SET
Standard
4шт.
11
A77466
BEARING SET
Undersize: 0,25 mm
4шт.
11
A77467
BEARING LINER
Undersize: 0, 50 mm
4шт.
11
A77468
BEARING SET
Undersize: 0,75 mm
4шт.
11
A77469
BEARING SET
Undersize: 1,00 mm
4шт.
Выбрано товаров: 40
