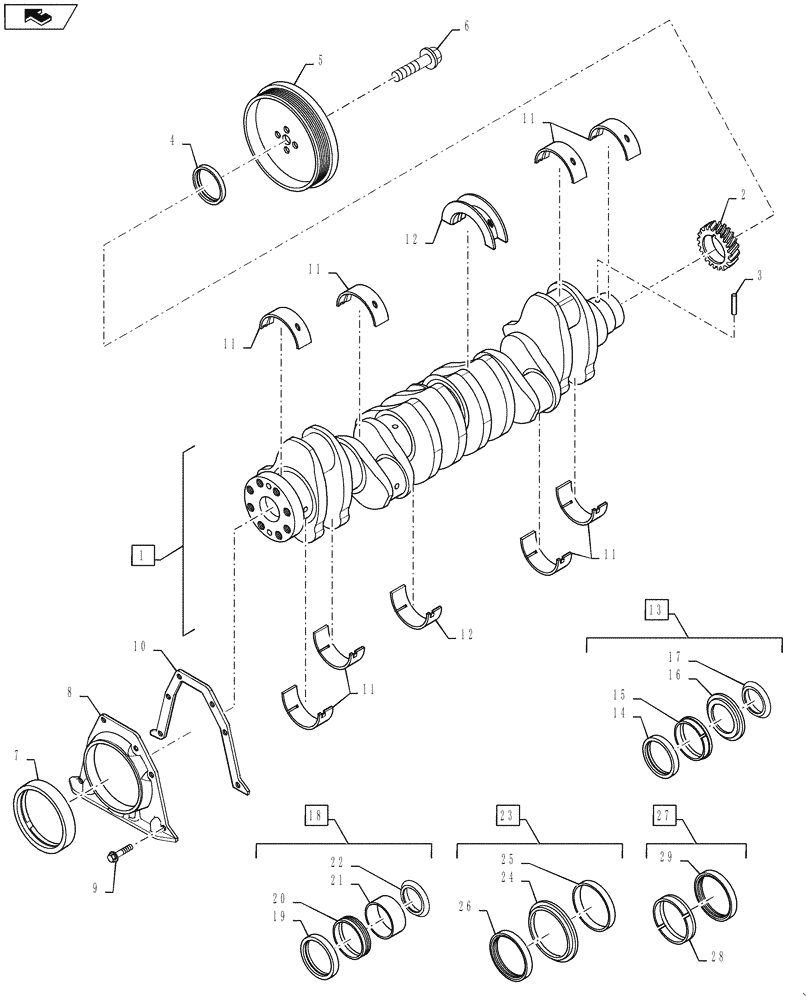

Запчасти Case 521D (02-25) - CRANKSHAFT (02) - ENGINE

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

JR908031

CRANKCASE

Crankshaft; Remanufactured; North America Only; Order J908032

1шт.

J929036R

REMAN-CRANKSHAFT

521D (BEFORE S/N JEE0135500), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Incl. Ref 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

521D (BEFORE S/N JEE0135500), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

Gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Order A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

7

NSS

NOT SOLD SEPARAT

Seal; Order A77890

1шт.

8

J936904

REAR COVER

Retainer

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

0,25 mm; Undersize

4шт.

11

A77474

BEARING SET

0,50 mm; Undersize

4шт.

11

A77476

BEARING SET

0,75 mm; Undersize

4шт.

11

A77478

BEARING SET

1,00 mm; Undersize

4шт.

12

A77896

BEARING SET

Standard

1шт.

12

A77473

THRUST BEARING

0,25 mm; Undersize

1шт.

12

A77475

THRUST BEARING

0,50 mm; Undersize

1шт.

12

A77477

THRUST BEARING

0,75 mm; Undersize

1шт.

12

A77479

THRUST BEARING

1,00 mm; Undersize

1шт.

12

A77841

THRUST BEARING

0,50 mm Undersize; 0,50 mm Oversize

1шт.

12

A77840

THRUST BEARING

1,00 mm Undersize; 1,00 mm Oversize

1шт.

13

A77889

SEAL PACKAGE

Crankshaft, Front; Incl. Ref 14 - 17, For Standard Service

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front; Incl. Ref 19 - 22 Contians Service Seal

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear; Incl. Ref 24, 24A, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear; Incl. Ref 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
