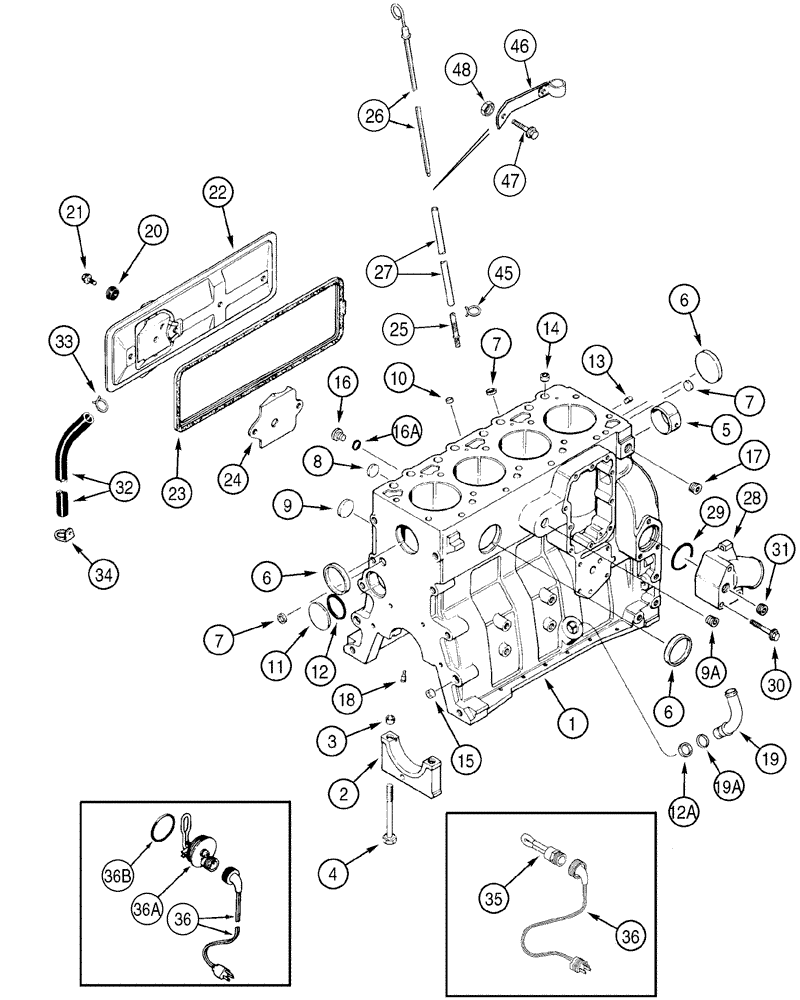

Запчасти Case 521D (02-24) - CYLINDER BLOCK (02) - ENGINE

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

379092A1

ENGINE

Complete Engine; Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Order 234277A2 Engine

1шт.

234277A2

BASIC ENGINE

Basic Service Engine; Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Inj. Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Remanufactured

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY; Short; With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Incl. Ref 1 - 8

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY; Short; Remanufactured

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. Ref 2 - 8; Order J933220 Block Kit

1шт.

2

J936791

BEARING CAP

Cap; Includes J900068

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

BUSHING; Front; See Figure 02-23

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Block Kit; Incl. Ref 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. Ref 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm; Not Used in This Application

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

Ring, 16 mm OD

2шт.

15

J900068

BEARING WASHER

Ring, 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

Hex Socket, 10 mm; Incl. Ref 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

Hex Socket, 14 mm; Incl. Ref 17B, Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Incl. Ref 17D; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Illustrated

1шт.

18

J937214

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Used With Ref 19A

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J936186

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

A77645

TUBE

Reference 25 - 27 Not Included With Engine Assembly, Purchase Separately

1шт.

26

J937511

DIPSTICK,990.3mm L

1шт.

27

J285703

TUBE,12 mm OD x 787.5 mm L

1шт.

28

J934877

HYD CONNECTOR

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

A77429

PLUG

1/2 PT

2шт.

32

J918612

TUBE,360.00 mm

1шт.

33

J904230

CLAMP,25.4mm

1шт.

34

J928989

CLIP

1шт.

REF

INSTRUCTION

ENGINE BLOCK HEATER; 120 VOLT; NORTH AMERICA ONLY

1шт.

309651A1

KIT

Coolant Heater; 120V; Incl. Ref 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element; Replaces A77505

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

196803A1

KIT

Coolant Heater; 120V; Incl. Ref 36 - 36B

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

36a

NSS

NOT SOLD SEPARAT

Element; Replaces A77505

1шт.

36b

J910517

O-RING

1шт.

REF

INSTRUCTION

ENGINE BLOCK HEATER; 240 VOLT; EUROPE ONLY

1шт.

309652A1

KIT

Coolant Heater; 240V; Incl. Ref 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element; Replaces A77505

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

124340A1

KIT

Coolant Heater; 240V; Incl. Ref 36 - 36B

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

36a

NSS

NOT SOLD SEPARAT

Element; Replaces A77505

1шт.

36b

J910517

O-RING

1шт.

REF

INSTRUCTION

REPAIR KIT

1шт.

A77887

PACKAGE,SERVICE

Repair; Incl. Ref 37 - 44; Not Illustrated

1шт.

37

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 02-27

4шт.

38

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-27

4шт.

39

A77465

BEARING SET

See Figure 02-27

4шт.

40

A77405

CRANKSHAFT BEARING

See Figure 02-25

4шт.

41

A77896

BEARING SET

See Figure 02-25

1шт.

42

A77975

GASKET KIT

See Figure 02-28

1шт.

43

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cylinder Head; See Figure 02-21

1шт.

44

A77673

GASKET KIT

See Figure 02-19

1шт.

45

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

46

J905803

BRACE

1шт.

47

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

48

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
