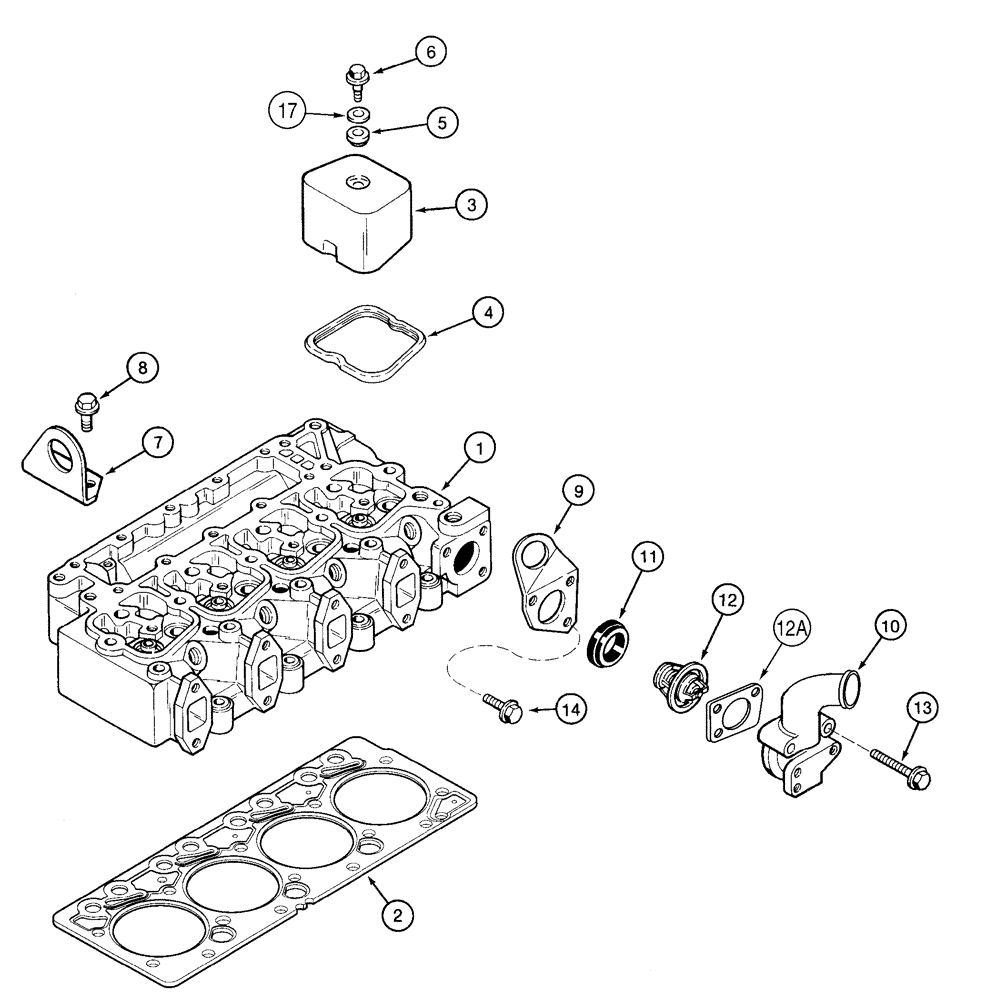

Запчасти Case 521D (02-21) - CYLINDER HEAD - COVER (02) - ENGINE

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

REF

INSTRUCTION

HEAD; See Figure 02-22

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

1шт.

2

J283336

GASKET

0,25 mm

1шт.

2

J283338

GASKET

0,50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

REF

INSTRUCTION

THERMOSTAT AND HOUSING

1шт.

9

J903757

BRACKET

1шт.

10

J914411

HOUSING

1шт.

A77736

THERMOSTAT

KIT, Thermostat; Incl. Ref 11 - 12A

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

12a

J920336

PLATE

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J285100

SUPPORT

Support

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.
