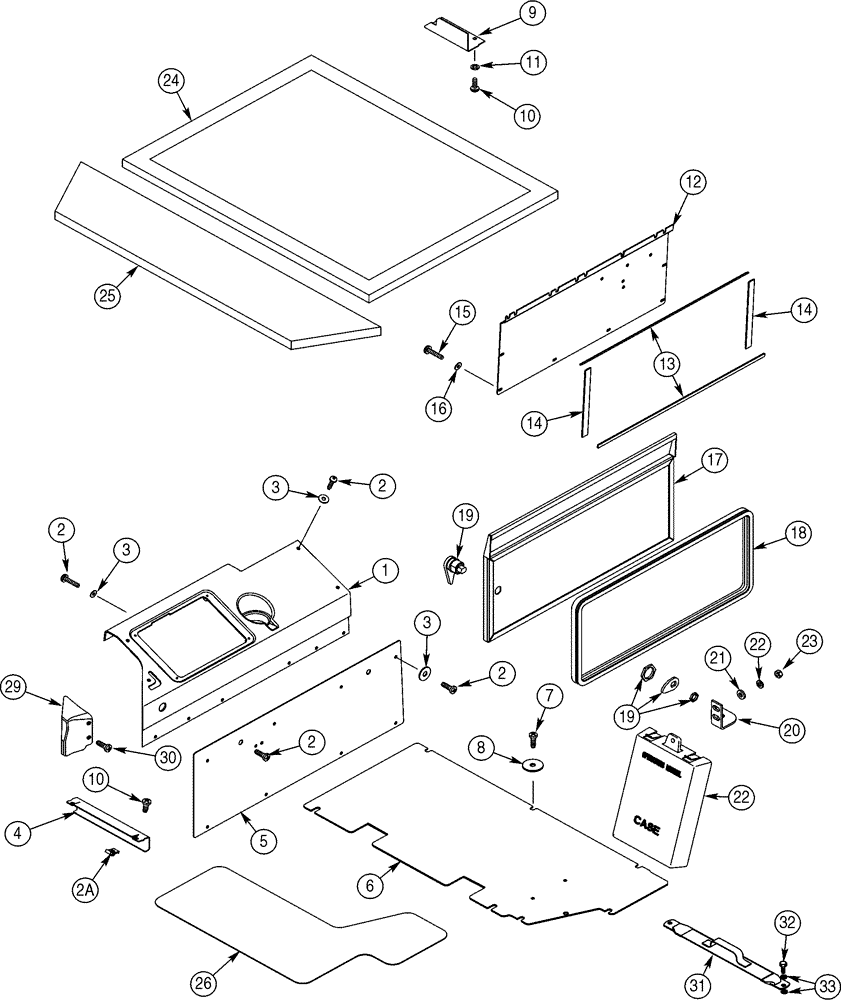

Запчасти Case 521D (09-53) - CANOPY, ROPS - COVERS (09) - CHASSIS

1

399194A1

COVER

Control Console; See Figure 09-38, Ref 9 - 17 for Wrist Support Components

1шт.

2

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

16шт.

2a

833-40306

SPRING NUT,M6, U

2шт.

3

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

14шт.

4

333631A1

COVER

Front Panel

1шт.

5

361331A2

PANEL

Console, Side

1шт.

6

294765A1

COVER

Rear, Floor

1шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

8шт.

8

1990503C1

WASHER

8шт.

9

324533A1

PANEL

Harness Access

1шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

4шт.

11

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

2шт.

12

380766A1

PANEL

Access

1шт.

13

187787C1

SEALING STRIP

600 mm (23-5/8 in); Access Panel; Top; Cut From 180624C1

2шт.

14

187782C1

SEALING STRIP

Access Panel; Side

2шт.

15

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

6шт.

16

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

6шт.

17

237718A1

DOOR

Access

1шт.

18

238856A2

DOOR SEAL,1786mm L

1786 mm (70-5/16 in)

1шт.

19

255065A1

LATCH

1шт.

20

221104A1

LATCH

Catch

1шт.

21

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

22

892-11006

LOCK WASHER,M6

2шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

24

302851A1

ROOF LINING

Rear; Canopy Roof Headliner

1шт.

25

302852A1

ROOF LINING

Front; Canopy Roof Headliner

1шт.

26

L126989

FLOOR MAT

Non-Skid

1шт.

27

R46464

CASE

Manual Box

1шт.

28

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

29

399217A1

COVER

Harness

1шт.

30

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

2шт.

31

348580A1

STRAP

Storage

1шт.

32

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
