(09-52) - AIR CONDITIONING - COMPRESSOR MOUNTING

Запчасти Case 521D (09-52) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

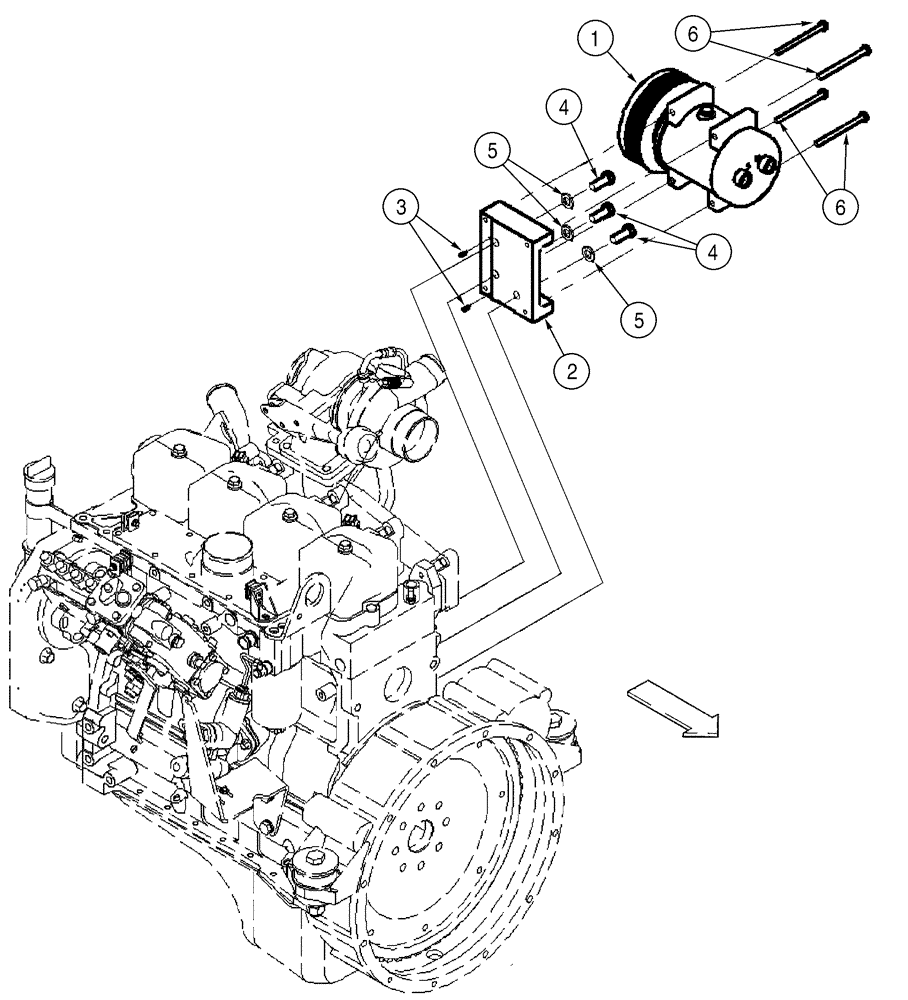

Схема запчастей Case 521D - (09-52) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS
2
1
4
5
5
3
6
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

352524A1

COMPRESSOR

Air Conditioning; Component Parts Not Serviced Separately

1шт.

86983968R

REMAN-COMPRESSOR

521D BEFORE S/N JEE0135500, Reman for New P/N 352524A1

1шт.

86983968C

CORE-COMPRESSOR

Return Number

1шт.

2

391851A2

BRACKET

Compressor Mounting

1шт.

3

837-4016

DOWEL,M4 x 16

2шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.
