Запчасти Case 521D (09-49) - AIR CONDITIONING (09) - CHASSIS

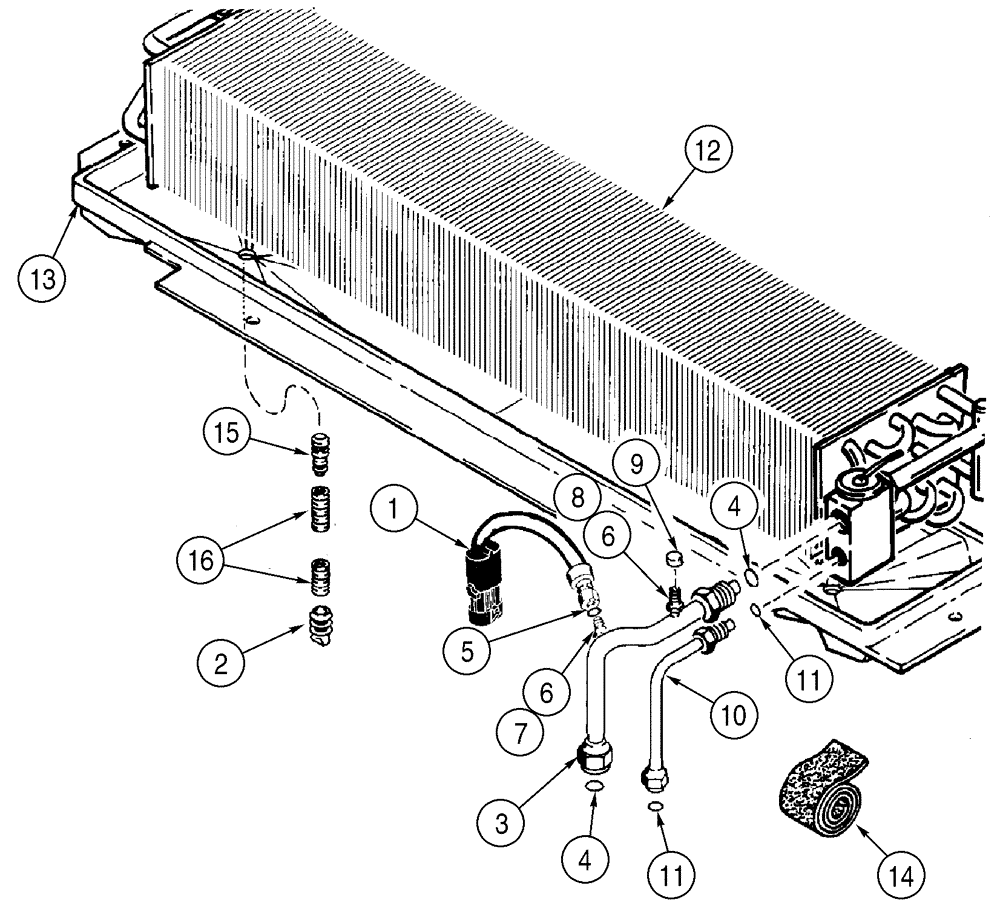

Схема запчастей Case 521D - (09-49) - AIR CONDITIONING (09) - CHASSIS
11
14
4
6
12
4
15
2
13
7
6
3
1
5
16
9
10
11
8

Артикул

Название

Примечание

Количество

CAB TO EVAPORATOR CORE

1шт.

1

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

2

109239C2

CHECK VALVE

2шт.

3

104399A1

TUBE

Upper; Incl. 4 - 9

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

5

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

6

1250594C2

CORE

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting

1шт.

9

122553A1

CAP

1шт.

10

104400A1

TUBE,0.375" OD, 115, 53 mm Length

Lower; Incl. 11

1шт.

11

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

12

233424A1

HEATER

Core, Heating And Air Conditioning; See Figure 09-47

1шт.

13

1339577C3

PAN

Condensation Tray; See Figure 09-47

1шт.

14

83822C1

TAPE

610 mm (24 in); Evaporator Core, Tubes, Valve and Hoses; Cut From 1954475C1

1шт.

15

1250522C3

FITTING

Drain Hose To Housing

2шт.

16

1977334C1

HOSE

610 mm (24-1/8 in); Drain; From Condensation Pan; Cut From 198091C1

2шт.

Выбрано товаров: 17
