Запчасти Case 521D (02-15) - TURBOCHARGER SYSTEM (02) - ENGINE

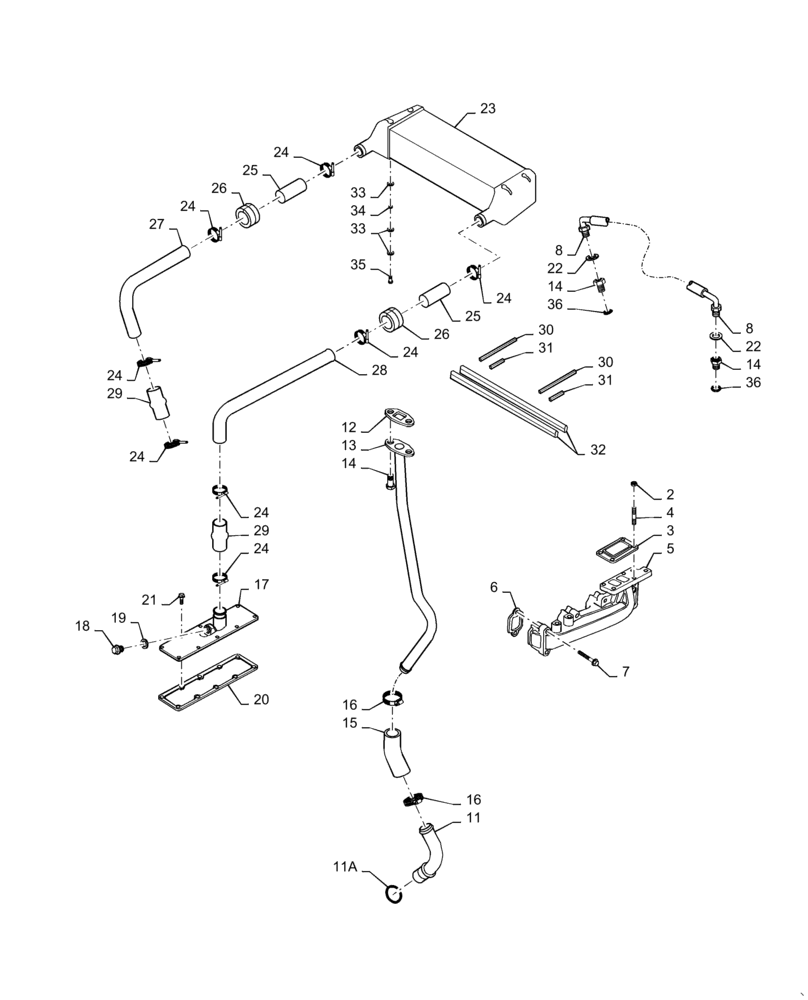

Схема запчастей Case 521D - (02-15) - TURBOCHARGER SYSTEM (02) - ENGINE
12
34
30
11a
25
16
20
5
25
6
30
31
3
15
33
8
26
24
24
27
36
19
29
24
17
29
8
26
32
33
13
28
22
18
14
35
24
36
22
21
24
24
7
23
14
14
4
16
24
31
2
24
11

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

1

REF

INSTRUCTION

Turbocharger; See Figure 02-16; Not Illustrated

1шт.

2

J818824

FLANGE NUT

M10

4шт.

3

J919369

GASKET,0.5mm Thk

1шт.

4

J818823

STUD

4шт.

5

J901919

MANIFOLD

Exhaust

1шт.

6

J927154

GASKET,0.38mm Thk

4шт.

7

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

M10 x 65; If Used

8шт.

7

J901448

FLANGE BOLT,Hex, M10 x 65mm

If used

8шт.

8

J913759

HOSE

1шт.

9

J919687

HYD CONNECTOR

Incl. Ref 10

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

11

J931973

TUBE,0.875" OD

Used With J931824

1шт.

11a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

12

J937706

GASKET,0.79mm Thk

1шт.

13

J934064

TUBE,22.22 mm OD x 393, 131 mm L

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

15

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

A77416

COVER

Incl. Ref 17, 18, 19

1шт.

17

J904339

COVER

Intake

1шт.

18

J907185

PLUG

1шт.

19

J906773

WASHER

1шт.

20

J938153

MANIFOLD GASKET,0.8mm Thk

1шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

10шт.

22

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

23

399860A1

AFTERCOOLER

1шт.

24

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

25

402568A1

INTAKE AIR HOSE,50.80 mm ID x 127.00 mm

2шт.

26

402614A1

SEAL

2шт.

27

400018A1

AIR INTAKE TUBE

389 mm (15 5/16 in)

1шт.

28

400019A1

AIR INTAKE TUBE

406 mm (16 in)

1шт.

29

400017A1

TUBE

127 mm (5 in)

2шт.

30

402623A1

SEAL

2шт.

31

407281A1

SEAL

2шт.

32

381934A1

SEAL

2шт.

33

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

34

386040R1

SPRING

2шт.

35

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

36

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Выбрано товаров: 40
