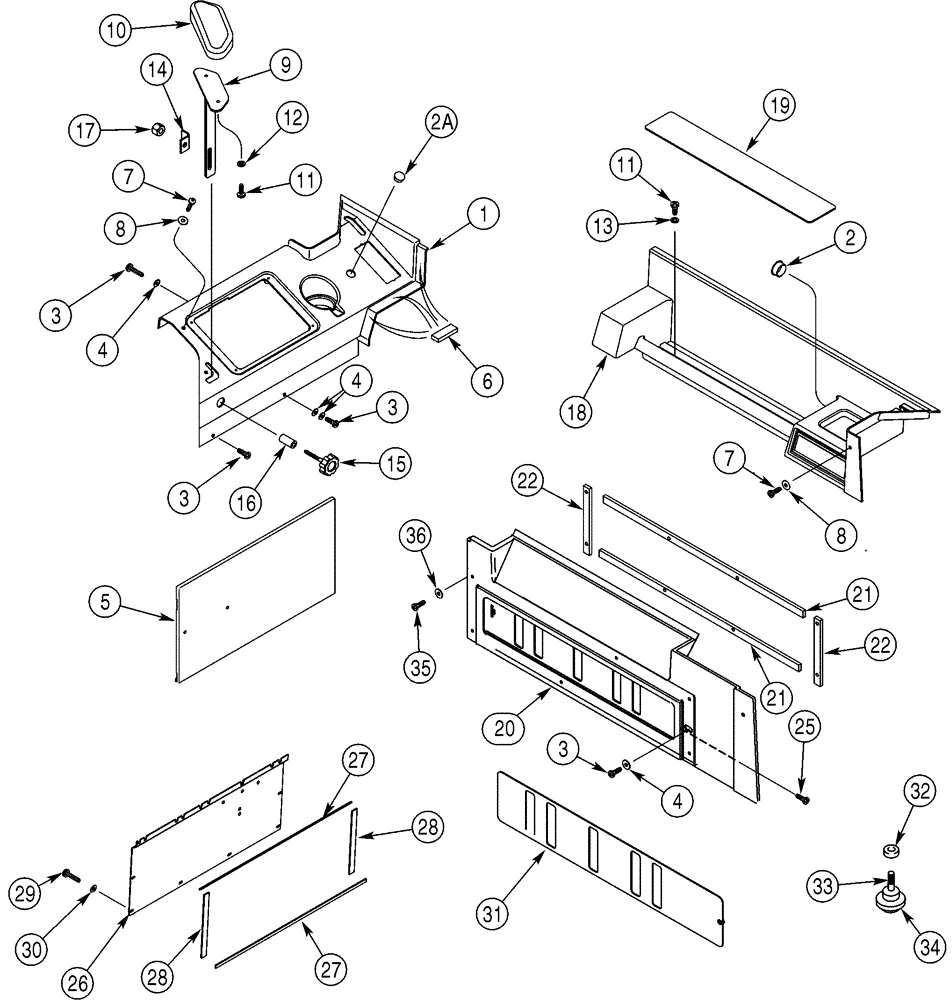

Запчасти Case 521D (09-38) - COVERS - CONSOLE AND WRIST SUPPORT (09) - CHASSIS

CAB MODELS

1шт.

1

399187A1

COVER

Control Console

1шт.

2

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

2a

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

5шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

5шт.

5

399191A1

PAD

Console

1шт.

6

327332A1

SEAL

56 mm (2-1/4 in)

3шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

3шт.

8

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

3шт.

9

221102A2

SUPPORT

Wrist; If Used

1шт.

9a

408275A1

SUPPORT

Wrist; If Used

1шт.

10

221103A1

PAD

Wrist Support

1шт.

11

297850A1

SCREW,Cross Pan Hd, M6 x 16

4шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

2шт.

14

221125A1

RETAINER

1шт.

15

221251A1

KNOB

Adjusting

1шт.

16

L126936

SPACER

1шт.

17

231-1445

NUT,5/16"-18, GB

1шт.

18

399192A1

CONSOLE

Rear Storage

1шт.

19

257461A1

PAD

1шт.

20

399188A1

COVER

Rear

1шт.

21

327131A1

FOAM INSULATION,20mm W x 685.1mm L x 8.5mm Thk

Blower Box, Upper

2шт.

22

327132A1

FOAM INSULATION,20mm W x 196mm L x 8.5mm Thk

Blower Box, Side

2шт.

25

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

5шт.

26

380766A1

PANEL

Access

1шт.

27

187787C1

SEALING STRIP

600 mm (23-5/8 in); Access Panel, Upper; Cut From 180624C1

2шт.

28

187782C1

SEALING STRIP

Access Panel, Side

2шт.

29

297850A1

SCREW,Cross Pan Hd, M6 x 16

6шт.

30

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

6шт.

31

367817A1

PLATE

Louver

1шт.

32

374646A1

SPACER

1шт.

33

60-4135T1

STUD,1/4" - 20 x 1-7/16"

1шт.

34

60-4136T1

KNOB

1шт.

35

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

36

195-81029

WASHER,#10

(7/32 x 7/16 x 1/16")

6шт.
