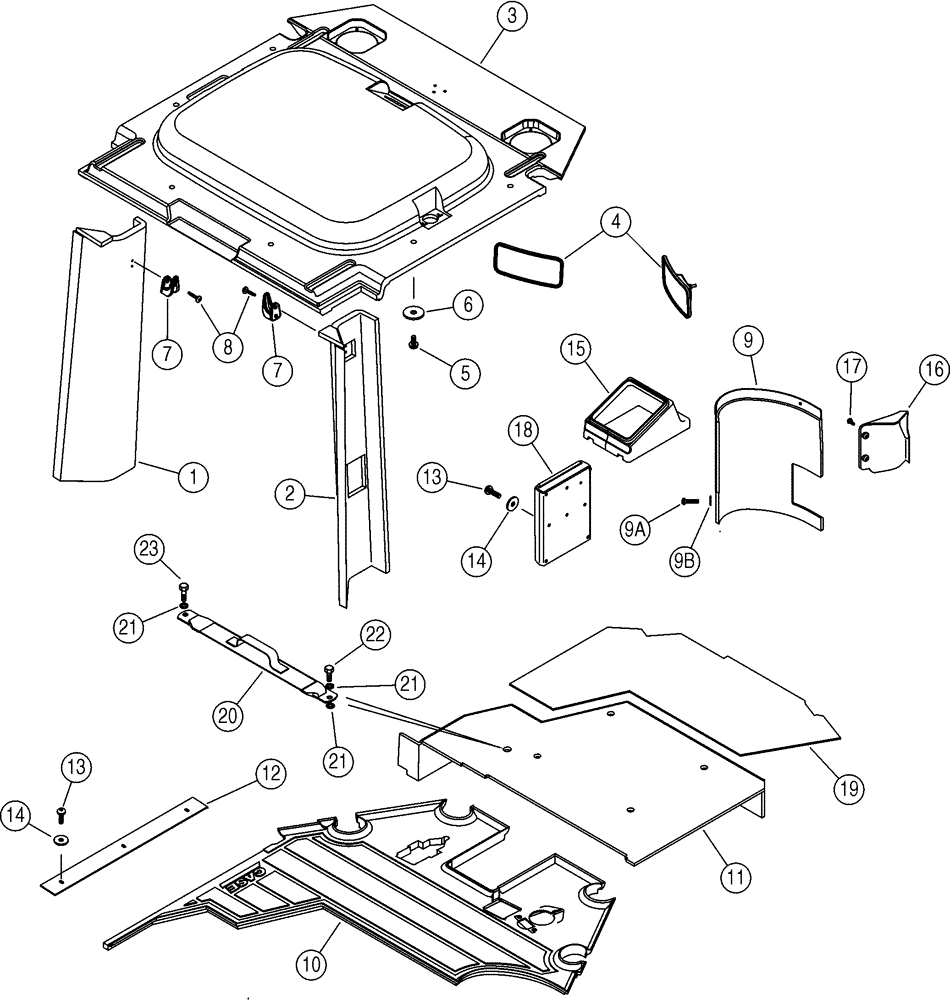

Запчасти Case 521D (09-36) - CAB - INTERIOR (09) - CHASSIS

1

399214A1

COVER

Rear Post; Left-Hand

1шт.

2

399215A1

COVER

Rear Post; Right-Hand

1шт.

3

399216A1

ROOF LINING

1шт.

4

A177462

MIRROR

Rear View

2шт.

5

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

6шт.

6

1990503C1

WASHER

6шт.

7

114549A1

COAT HOOK

2шт.

8

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

4шт.

9

399186A1

PAD

Tower

1шт.

9a

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

1шт.

9b

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

1шт.

10

373792A2

FLOOR MAT

Front

1шт.

11

234003A2

FLOOR MAT

Platform

1шт.

12

279565A1

PROTECTION STRIP

1шт.

13

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

5шт.

14

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

5шт.

15

234004A1

BOOT

Steering Pedestal

1шт.

16

399217A1

COVER

Harness

1шт.

17

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

2шт.

18

223935A1

BOX

Manual

1шт.

19

346600A1

PAD

1шт.

20

348580A1

STRAP

1шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
