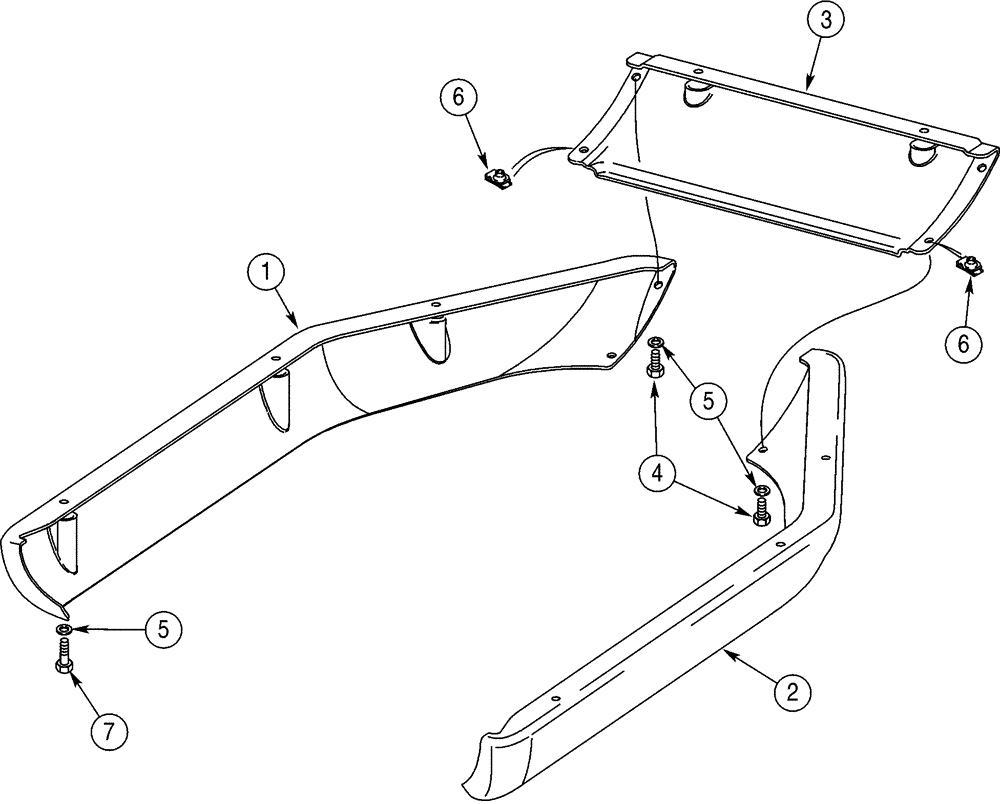

Запчасти Case 521D (09-33) - COVERS - CAB AND CANOPY, LOWER (09) - CHASSIS

1

387087A2

PLASTIC

Cover; Left-Hand

1шт.

2

387088A2

PLASTIC

Cover; Right-Hand

1шт.

3

387089A1

PLASTIC

Cover; Center

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

6

833-40308

SPRING NUT,M8, U

4шт.

7

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.
