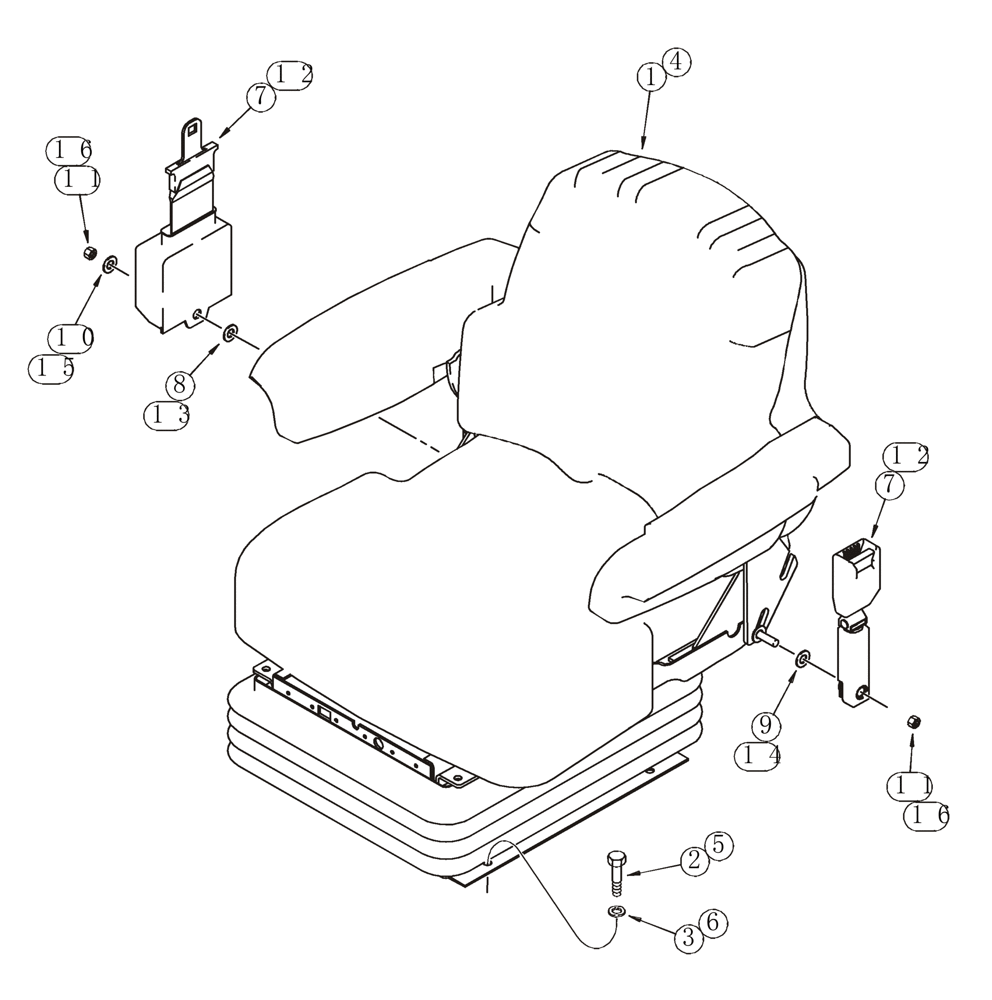

Запчасти Case 521D (09-26) - SEAT - MOUNTING (09) - CHASSIS

MECHANICAL SUSPENSION SEAT

1шт.

1

399261A1

DRIVER SEAT

Vinyl; See Figure 09-28, 09-29

1шт.

1

399257A1

DRIVER SEAT

Cloth; See Figure 09-28, 09-29

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

AIR SUSPENSION SEAT

1шт.

4

399259A1

DRIVER SEAT

Cloth; See Figure 09-30, 09-31

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

NORTH AMERICAN ONLY

1шт.

51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

7

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Includes 8, 9, See Figure 09-26

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

76 mm (3 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

12

249117A1

SAFETY BELT ,76.20 mm W

If Equipped, Includes 13, 14, See Figure 09-26

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

Washer

1шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

16

231-2447

LOCK NUT,7/16"-14, GB

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
