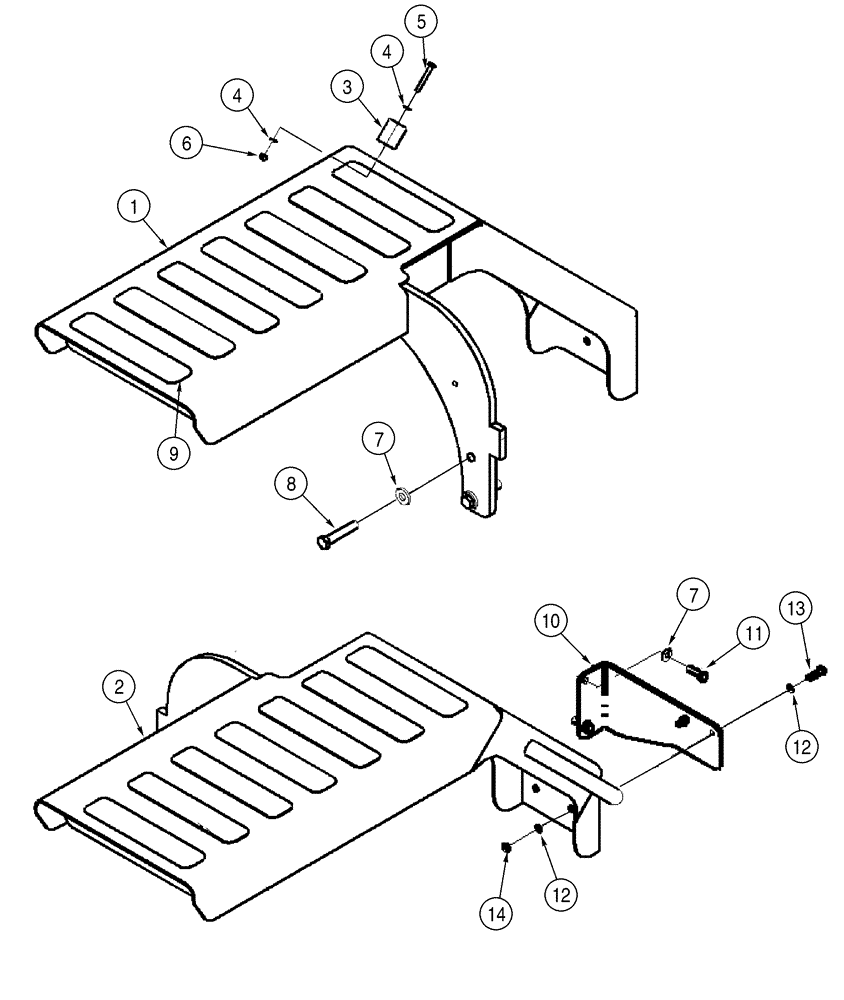

Запчасти Case 521D (09-17) - FENDERS, REAR (09) - CHASSIS

STANDARD

1шт.

1

394975A2

FENDER

Left Hand

1шт.

2

394977A2

FENDER

Right Hand

1шт.

3

L126483

BUMPER

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

1шт.

6

832-10406

NUT,M6 x 1, Cl 8

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

8

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

9

D55216

PAD,2" x 9"

2 x 9 in

14шт.

10

390313A1

BRACKET

Support; Right Hand

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
