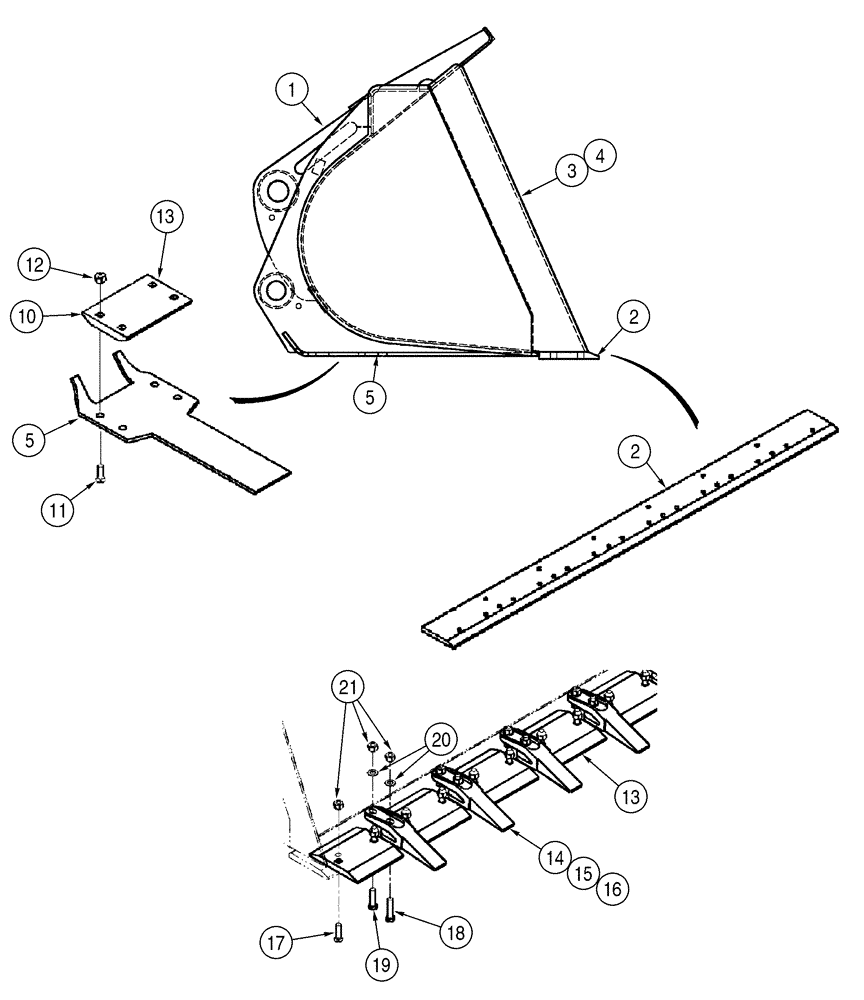

Запчасти Case 521D (09-10) - BUCKETS - LOADER (09) - CHASSIS

Z-BAR LOADER

1шт.

BUCKET : 2.3 CU M (3.0 CU YD)

1шт.

391509A1

BUCKET

Loader; Order From Machinery Price List; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

NSS

NOT SOLD SEPARAT

Edge, Cutting; Front; Welded On

1шт.

3

NSS

NOT SOLD SEPARAT

Edge, Cutting; Right Side; Welded On

1шт.

4

NSS

NOT SOLD SEPARAT

Edge, Cutting; Left Side; Welded On

1шт.

5

NSS

NOT SOLD SEPARAT

Plate; Bottom; Welded On

1шт.

10

360939A1

PLATE

Bottom; Bolt On

2шт.

11

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 in

8шт.

12

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

BUCKET TEETH AND CUTTING EDGE

1шт.

13

373354A1

CUTTING EDGE

8шт.

254825A1

TEETH

Incl. 14, 15, 16

7шт.

14

NSS

NOT SOLD SEPARAT

Shank

1шт.

15

254815A1

PIN

Point Retaining

1шт.

16

254820A1

TOOTH

Standard

1шт.

16

254822A1

TOOTH

Abrasion; Not Shown

1шт.

16

254823A1

BUCKET TOOTH

Penetration; Not Shown

1шт.

17

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

18

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

7шт.

19

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

7шт.

20

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

14шт.

21

425-1612

NUT,3/4"-10, G5, Hvy

30шт.
