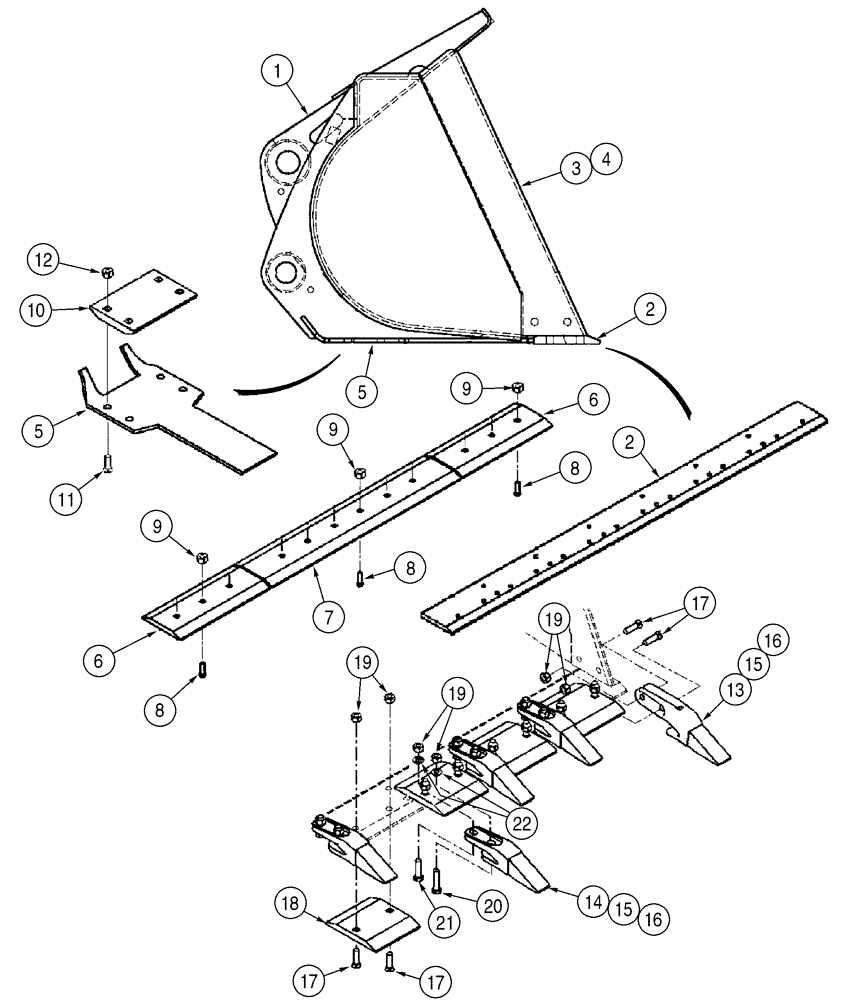

Запчасти Case 521D (09-09B) - BUCKET - LOADER (09) - CHASSIS

Z-BAR LOADER

1шт.

BUCKET : 1.9 CU M (2.50 CU YD)

1шт.

360996A1

BUCKET

Loader; Standard; Order From Machinery Price List

1шт.

388512A1

Loader; Used With ACS Pro-Series 2000 Coupler; Order From Machinery Price List

1шт.

404036A1

Loader; Used With ACS EC30 Coupler; Order From Machinery Price List; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

NSS

NOT SOLD SEPARAT

Edge, Cutting; Front; Welded On

1шт.

3

NSS

NOT SOLD SEPARAT

Edge, Cutting; Right Side; Welded On

1шт.

4

NSS

NOT SOLD SEPARAT

Edge, Cutting; Left Side; Welded On

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Wear; Bottom; Welded On

1шт.

BOLT-ON CUTTDING EDGE / REBORD TRANCHANT VISSE

1шт.

6

360941A2

EDGE, CUTTING

Outer; Bolt On

2шт.

7

360940A1

EDGE, CUTTING

Center; Bolt On

1шт.

8

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

9

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

10

360939A1

PLATE

Bottom; Bolt On

2шт.

11

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 in

8шт.

12

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

BUCKET TEETH AND CUTTING EDGE / DENTS DU GODET ET BORD TRANCHANT

1шт.

254825A1

TEETH

Center; Incl. 14, 15, 16

6шт.

362852A1

TOOTH

Corner; Left Hand; Not Illustrated; Incl. 13, 15, 16

1шт.

368526A1

TOOTH

Corner; Right Hand; Incl. 13, 15, 16

1шт.

13

NSS

NOT SOLD SEPARAT

Shank; Corner

1шт.

14

NSS

NOT SOLD SEPARAT

Shank; Center

1шт.

15

254815A1

PIN

Point Retaining

1шт.

16

254820A1

TOOTH

Standard

1шт.

16

254822A1

TOOTH

Abrasion; Not Shown

1шт.

16

254823A1

BUCKET TOOTH

Penetration; Not Shown

1шт.

17

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

18

362962A1

EDGE, CUTTING

No Longer Used

7шт.

19

425-1612

NUT,3/4"-10, G5, Hvy

30шт.

20

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

6шт.

21

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

22

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

12шт.
