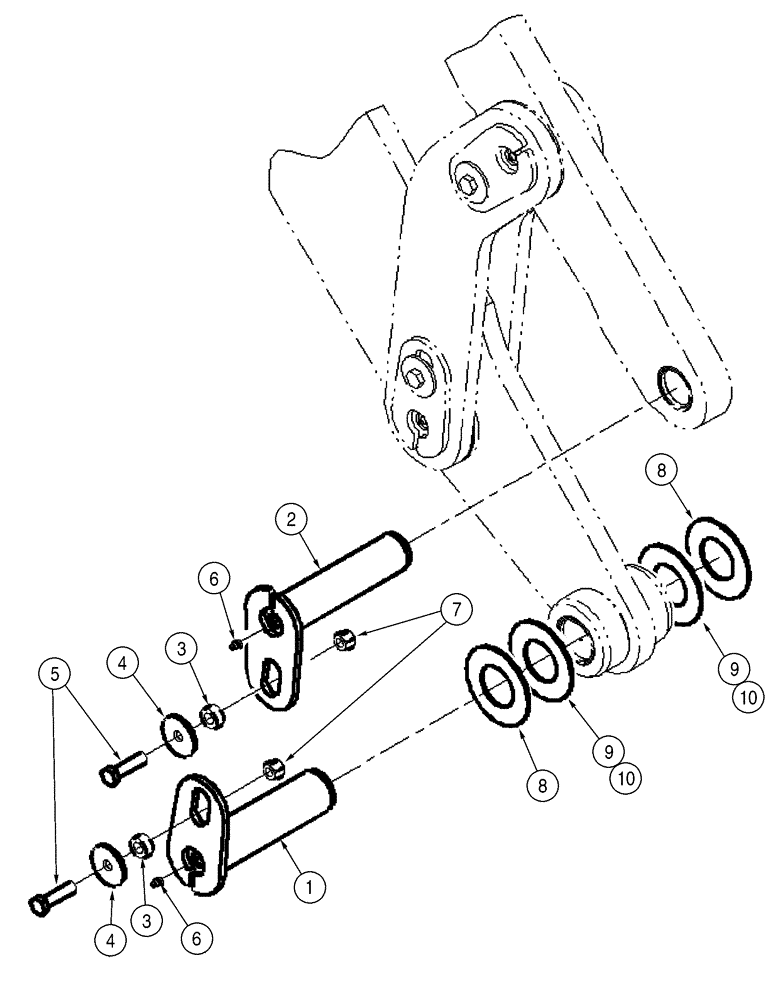

Запчасти Case 521D (09-08) - BUCKETS - ATTACHMENT (09) - CHASSIS

XT LOADER

1шт.

1

361128A1

PIN

Lift Arm

2шт.

2

368741A1

PIN ASSY.

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

4шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

5

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

7

832-10416

NUT,M16 x 2, Cl 8

4шт.

8

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

4шт.

9

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

1шт.

10

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

1шт.
