Запчасти Case 521D (09-06) - FRAME - LOADER LIFT AND LINKAGE (09) - CHASSIS

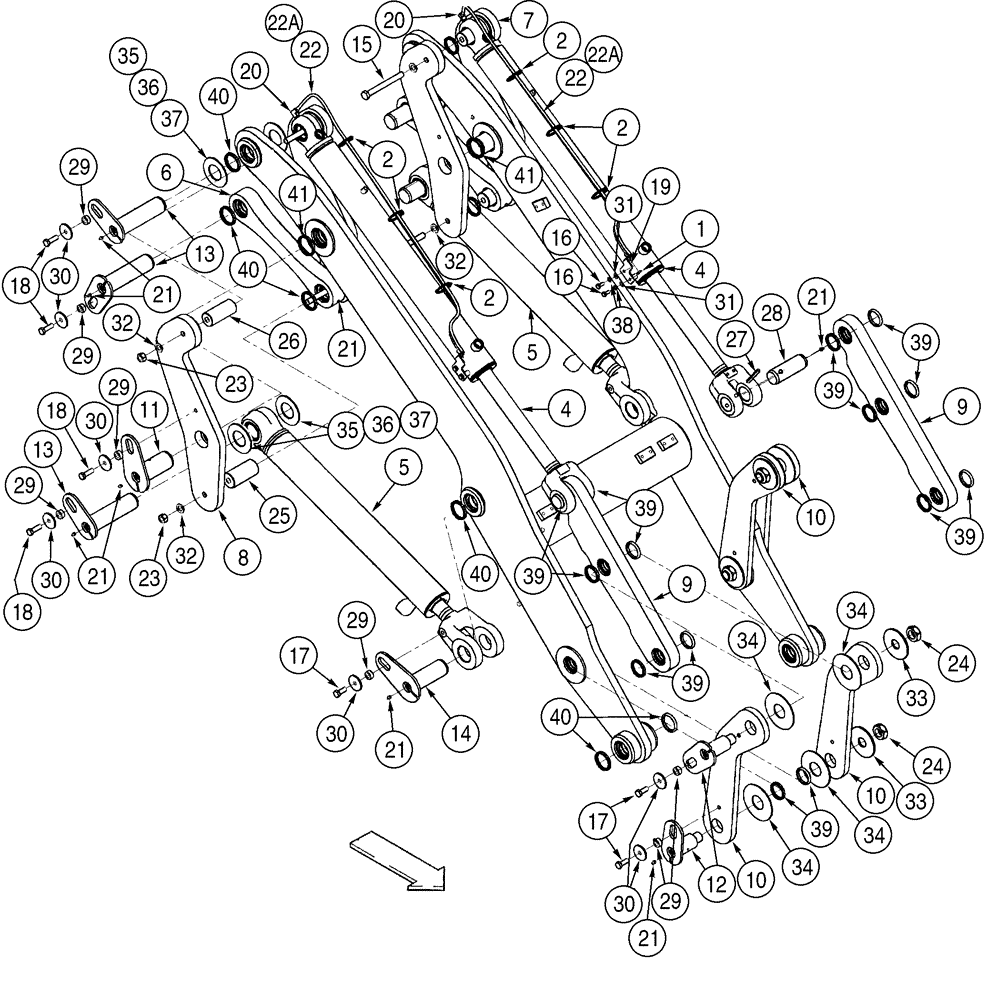

Схема запчастей Case 521D - (09-06) - FRAME - LOADER LIFT AND LINKAGE (09) - CHASSIS
4
13
12
15
7
23
13
36
24
40
34
32
21
30
29
39
31
34
22
18
21
37
39
41
39
2
30
10
26
20
31
19
24
21
4
40
14
20
5
9
2
35
18
17
9
18
29
33
11
35
41
30
39
39
28
21
27
10
29
1
36
34
38
2
6
23
25
37
10
16
32
17
2
5
22a
29
34
40
16
33
22a
29
39
40
21
21
32
29
22
30
8
39
30

Артикул

Название

Примечание

Количество

.

XT LOADER

1шт.

1

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

3

367750A3

ARM, LIFT

Loader Lift

1шт.

4

368885A1

CYLINDER

95 ID x 923 mm strk; Bucket Tilt; See Figure 08-30

2шт.

5

337568A1

CYLINDER

102 ID x 783 mm strk; Lift Cylinder; See Figure 08-28

2шт.

6

367752A2

LINK

For Bushings Order 87613427

2шт.

7

363756A1

LINK

Bellcrank; Left Hand

2шт.

8

363757A1

LINK

Bellcrank; Right Hand

2шт.

9

363831A2

LINK

2шт.

10

408531A1

LINK

4шт.

11

368744A1

PIN ASSY.

2шт.

12

369238A1

PIN ASSY.

4шт.

13

361128A1

PIN

6шт.

14

361133A1

PIN

2шт.

15

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

M20 x 190; 10.9

4шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

19

379672A1

BRACKET

2шт.

20

328082A1

ELBOW

1/8 PT

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

22

313682A1

FLEXIBLE HOSE

1320 mm (62 in); Grease; Incl. 22A

2шт.

22a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

829-1420

NUT,M20, Cl 10

4шт.

24

131-53

NUT,1 1/2"-12

4шт.

25

368776A1

PIN,63.5mm OD x 130.65mm L

2шт.

26

368775A1

PIN

2шт.

27

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

28

368836A1

PIN

2шт.

29

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

30

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

32

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

33

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

34

369712A1

WASHER

8шт.

35

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened

1шт.

36

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened

1шт.

37

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened

1шт.

38

892-11010

LOCK WASHER,M10

4шт.

39

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

16шт.

40

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

20шт.

41

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Выбрано товаров: 43
