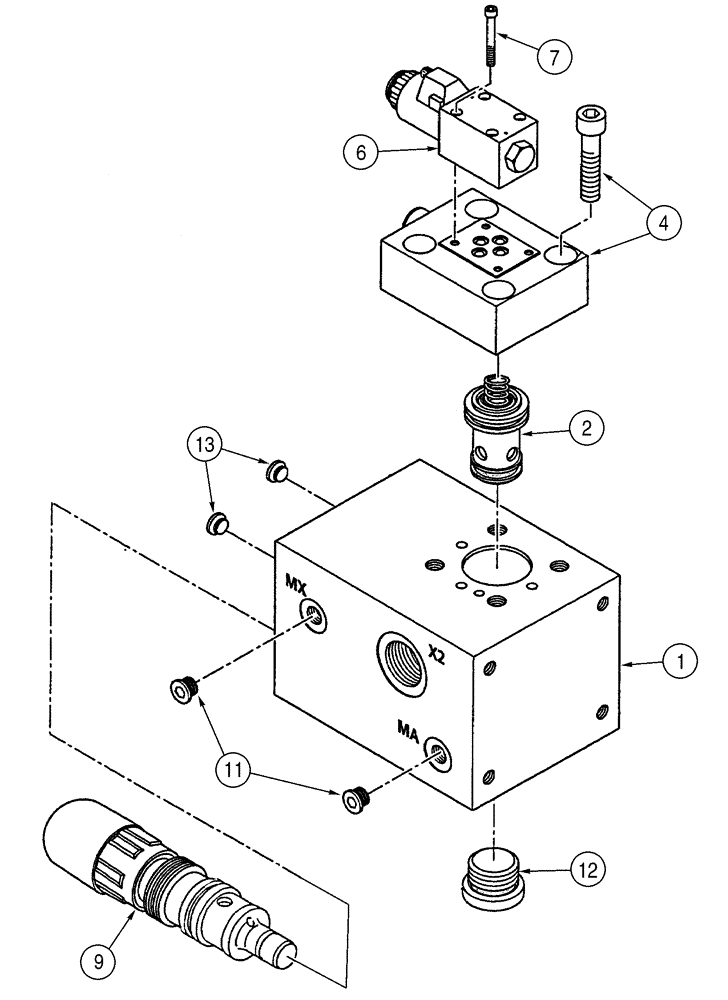

Запчасти Case 521D (08-46) - VALVE ASSY - RIDE CONTROL DIRECTIONAL (08) - HYDRAULICS

404428A1

VALVE

Directional Control; Incl. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

408842A1

VALVE

Incl. 3

1шт.

3

408870A1

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

4

408855A1

VALVE

Incl. 5

1шт.

5

408871A1

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

6

408866A1

VALVE

Directional; Incl. 8

1шт.

7

408881A1

HEX SOC SCREW,M5 x 50mm, Cl 10.9

M5 x 50; 10.9

4шт.

8

408868A1

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

9

408867A1

VALVE

Incl. 10

1шт.

10

408869A1

SEAL KIT

Seal; Component Parts Not Serviced Separately; Not Illustrated

1шт.

11

408882A1

LOCK SCREW

3шт.

12

408883A1

LOCK SCREW

1шт.

13

408884A1

PLUG

2шт.
