(08-43) - HYDRAULICS - LOADER CONTROL

Запчасти Case 521D (08-43) - HYDRAULICS - LOADER CONTROL (08) - HYDRAULICS

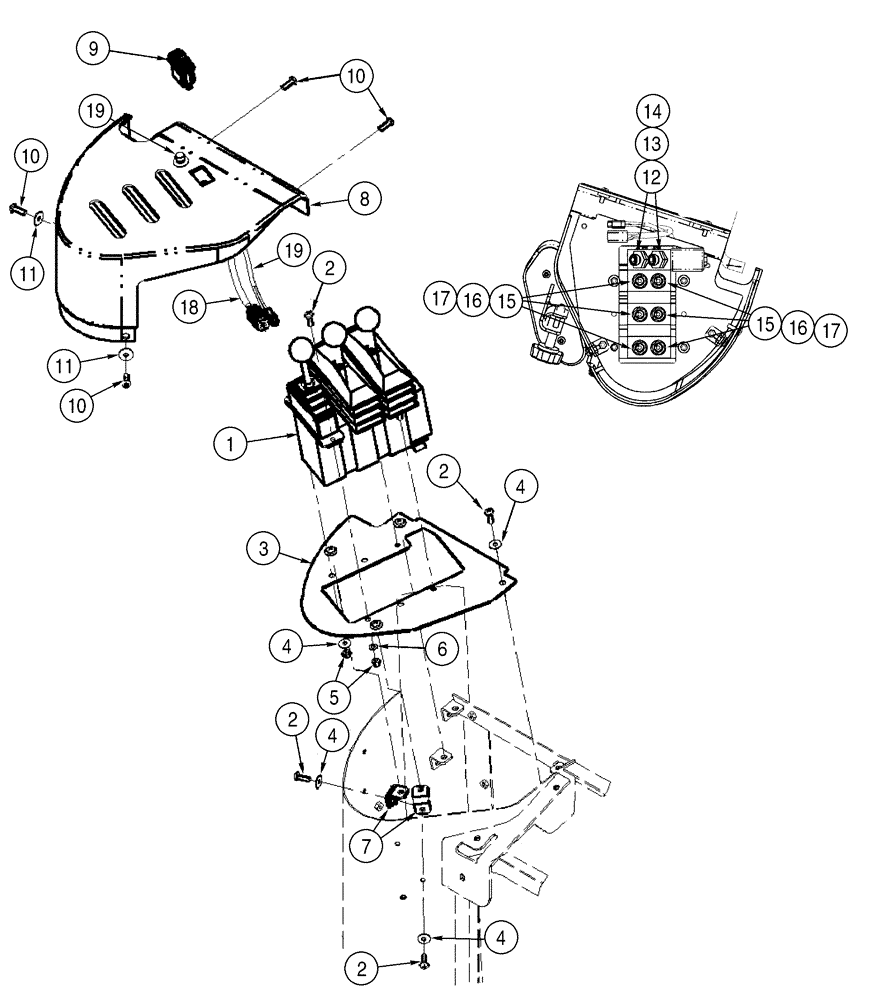

Схема запчастей Case 521D - (08-43) - HYDRAULICS - LOADER CONTROL (08) - HYDRAULICS
16
4
4
14
4
10
10
2
10
15
4
2
5
12
2
6
2
17
7
19
17
16
18
3
15
1
13
19
11
8
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

407869A1

VALVE, CONTROL

Three Lever With Three Spool Valve; See Figure 08-27

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

10шт.

3

407999A1

PLATE

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

9шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

400843A1

BRACKET

2шт.

8

407871A1

COVER

1шт.

9

400833A2

SWITCH

Forward/Neutral/Reverse Switch

1шт.

10

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

11

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

12

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

M10 fc sl x 14 orb; Incl. 13, 14

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

15

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 16, 17

6шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

18

402060A1

WIRE HARNESS

Forward/Neutral/Reverse Switch

1шт.

19

402390A1

SWITCH

Downshift; Incl. 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

Washer, Lock; Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Nut; Not Illustrated

1шт.
