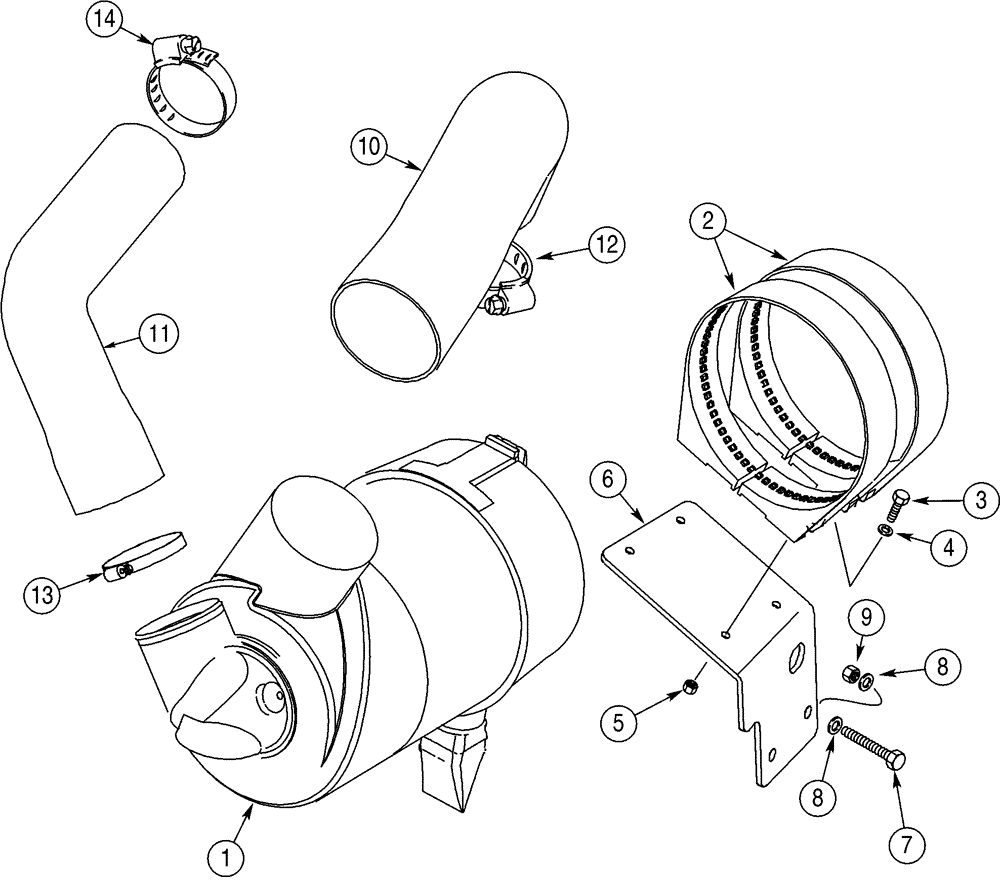

Запчасти Case 521D (02-10) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

373391A1

AIR CLEANER

Air; See Figure02-11

1шт.

2

380813A1

BRACKET

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

6

395755A1

PLATE

1шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

397118A1

AIR INTAKE TUBE,114.00 mm ID, 125.40 mm ID, SAE J200

1шт.

11

397120A1

AIR INTAKE TUBE,76.00 mm ID, 89.00 mm ID, SAE J200

1шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

13

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

14

L116820

CLAMP,82.55mm - 104.78mm

1шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
