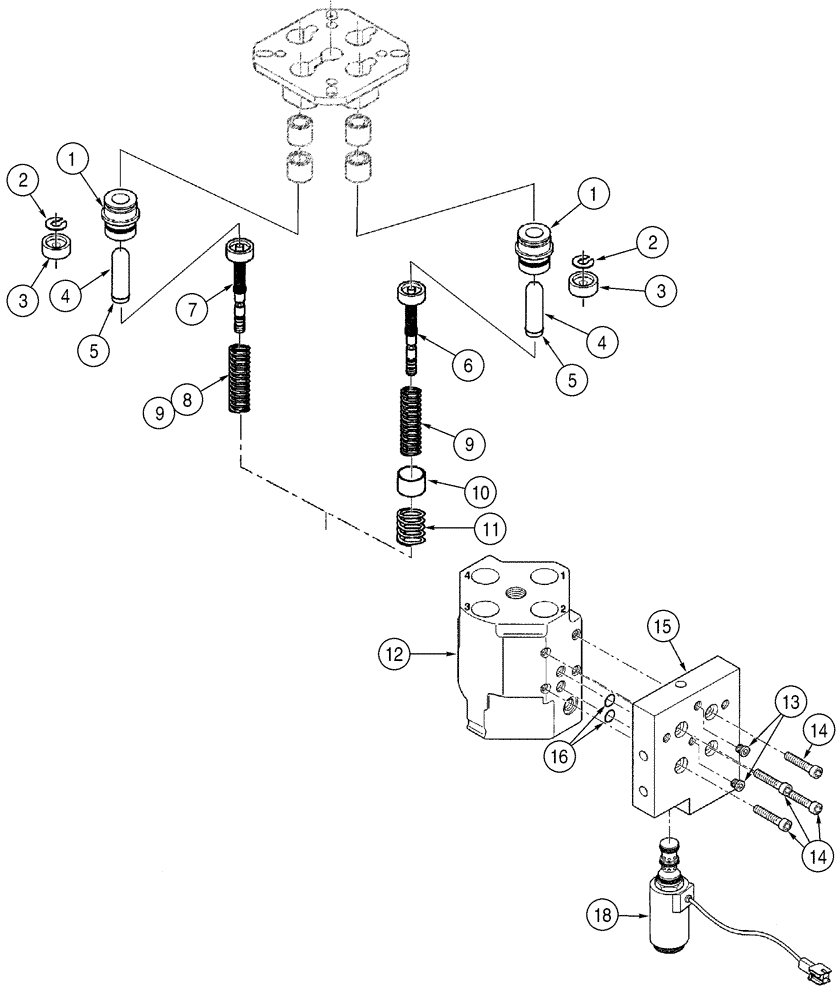

Запчасти Case 521D (08-39) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

395440A1

VALVE, CONTROL

Single Lever Remote; Incl. 1 - 18; Also Incl. Figure 08-38

1шт.

410553A1

KIT

Plunger; Used In All Ports; Incl. 1 - 5

4шт.

1

NSS

NOT SOLD SEPARAT

Guide

2шт.

2

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

NSS

NOT SOLD SEPARAT

Retainer

2шт.

4

NSS

NOT SOLD SEPARAT

Plunger

2шт.

5

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

6

410554A1

REGULATOR

Use In Port 1

1шт.

7

410555A1

REGULATOR

Use In Ports 2, 3, 4

3шт.

8

410556A1

SPRING

Set of Two; Use In Ports 2, 4

1шт.

9

410557A1

SPRING

Set of Two; Use In Ports 1, 3

1шт.

410558A1

KIT

Sensor; Use In Port 1; Incl. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Socket

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.

13

410623A1

KIT

Plug; Set of Two; If Used

1шт.

410579A1

KIT

Flange; Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

M6 x 25; Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Flange

1шт.

16

NSS

NOT SOLD SEPARAT

1,5 x 11; O-Ring

2шт.

17

410580A1

O-RING KIT,11mm ID x 1.5mm Width

O-Ring; Set of Two; For Replacement of Ref 16

1шт.

18

410583A1

VALVE

24V

1шт.
