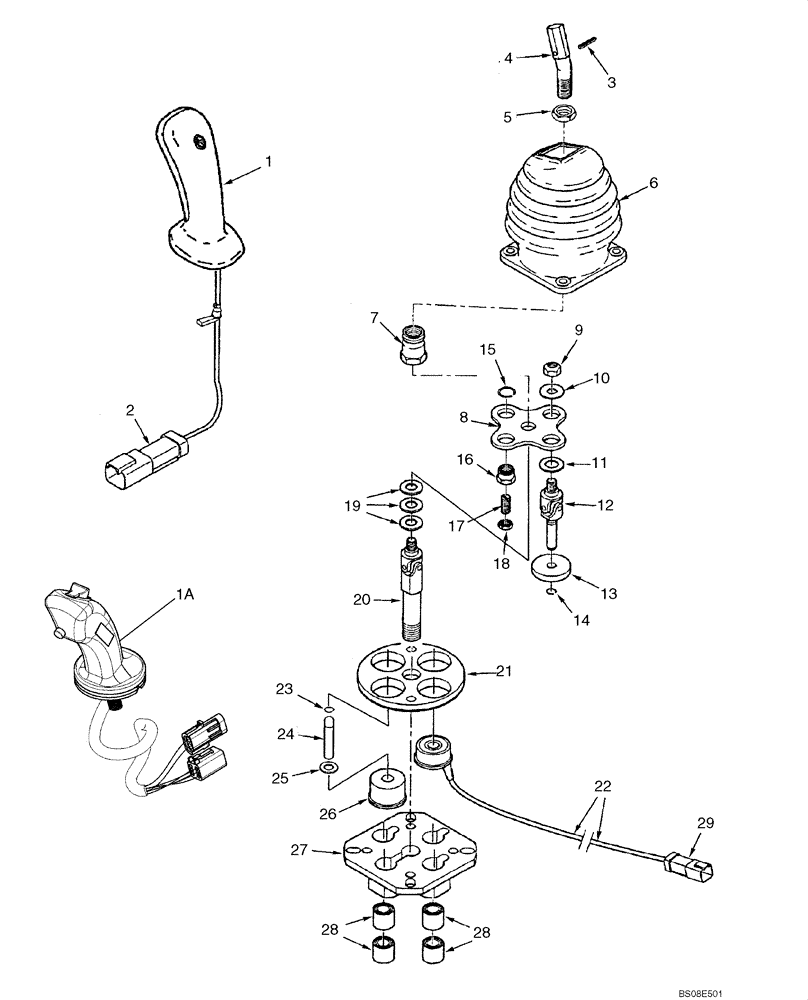

Запчасти Case 521D (08-38) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

395440A1

VALVE, CONTROL

Single Lever Remote; Incl. 1 - 29; Also Incl. Figure 08-39

1шт.

1

410107A1

HANDLE

No Longer Available, Order 87588665 Handle, Ref. 1A

1шт.

87588665R

REMAN-JOYSTICK

521D CASE WHEEL LOADER (BEFORE S/N JEE0135500), Reman for New P/N 410107A1

1шт.

87588665C

CORE-JOYSTICK

Return Number

1шт.

1a

87588665

JOYSTICK,W/F-N-R Switch

HANDLE, With F-N-R Switch

1шт.

87588665R

REMAN-JOYSTICK

521D CASE WHEEL LOADER (BEFORE S/N JEE0135500)

1шт.

87588665C

CORE-JOYSTICK

Return Number

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

410108A1

KIT

Lever; Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Pin, Lock

1шт.

4

NSS

NOT SOLD SEPARAT

Lever

1шт.

5

NSS

NOT SOLD SEPARAT

M12; Nut

1шт.

6

410565A1

BOOT

1шт.

7

410566A1

LOCK NUT

M12

1шт.

8

410567A1

BRACKET

1шт.

410568A1

KIT

Shaft Detent Kit; Incl. 9 - 14

3шт.

9

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft

1шт.

13

NSS

NOT SOLD SEPARAT

Armature

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

410569A1

KIT

Non-Detent Plunger Kit; Use In Non-Detent Port 2; Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

16

NSS

NOT SOLD SEPARAT

M16; Screw

1шт.

17

NSS

NOT SOLD SEPARAT

M8 x 16; Screw

1шт.

18

NSS

NOT SOLD SEPARAT

Nut

1шт.

19

410570A1

SHIM

Set of Three

1шт.

20

410571A1

SHAFT

1шт.

21

410572A1

FLANGE

1шт.

22

410574A1

SOLENOID

24V; Use In Detent Ports 1, 3, 4; Component Parts Not Serviced Separately

3шт.

410575A1

KIT

Plunger; Inc. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

24

NSS

NOT SOLD SEPARAT

Plunger

1шт.

25

NSS

NOT SOLD SEPARAT

Washer

1шт.

26

410576A1

GUIDE

Plunger

1шт.

27

410577A1

BRACKET

1шт.

28

410578A1

BUSHING

Set of Four

1шт.

29

410559A1

KIT

Connector; Incl. Six Pins

1шт.
