Запчасти Case 521D (08-35) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

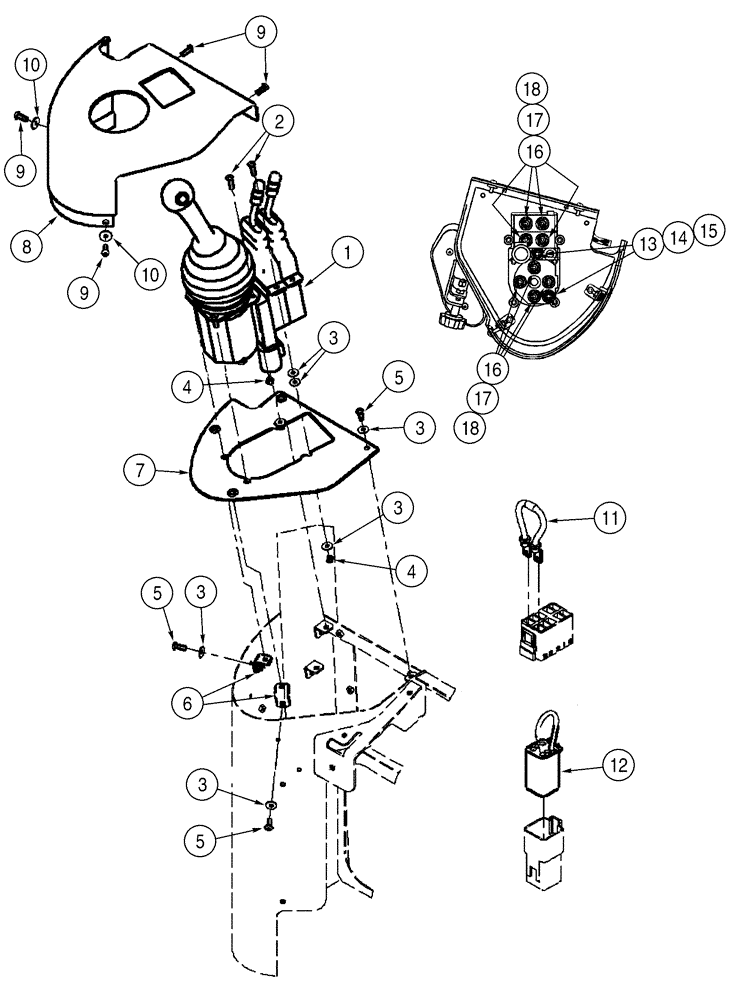

Схема запчастей Case 521D - (08-35) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
4
9
10
3
17
12
1
18
5
5
9
9
13
11
3
2
3
18
4
7
3
3
16
16
10
17
15
14
6
5
8

Артикул

Название

Примечание

Количество

THREE LEVER WITH FOUR SPOOL VALVE

1шт.

1

395442A1

VALVE, CONTROL

Three Lever; See Figure 08-38 - 08-39, 08-41

1шт.

2

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

4

832-10406

NUT,M6 x 1, Cl 8

6шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

6

400843A1

BRACKET

2шт.

7

400977A1

PLATE

1шт.

8

400403A1

COVER

1шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

10

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

11

409725A1

RESISTOR

Transmission Enable Switch

1шт.

12

409726A1

ELECTRICAL WIRE

WIRE FNR Switch Jumper

1шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 14, 15

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Seal Face End

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

16

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 17, 18

8шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Seal Face End

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

Выбрано товаров: 19
