Запчасти Case 521D (08-32) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

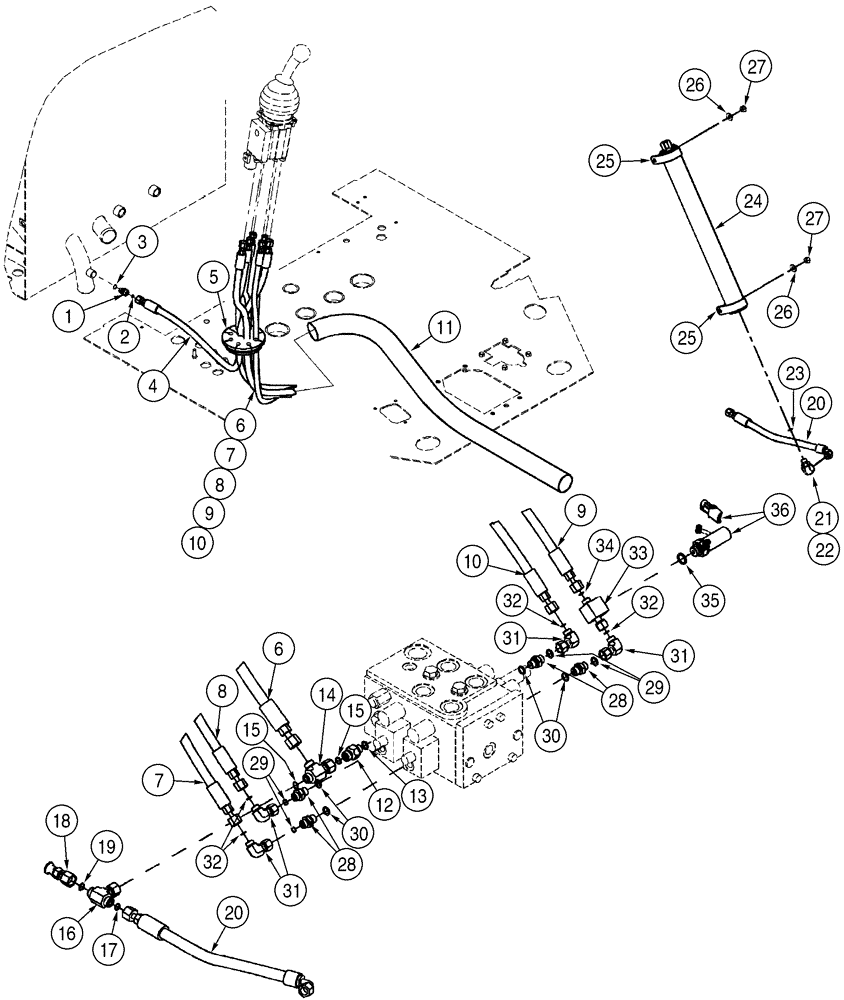

Схема запчастей Case 521D - (08-32) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
23
26
24
7
6
33
13
32
8
16
31
29
10
9
12
25
1
10
31
32
36
9
20
15
14
18
25
2
15
5
21
31
3
17
27
7
20
28
22
35
6
30
30
4
27
28
11
8
19
32
26
29
34

Артикул

Название

Примечание

Количество

Dual Lever With Three Spool Valve

1шт.

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 2, 3

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

4

392059A1

HOSE ASSY.

1294 mm lg; Hydraulic Tank

1шт.

5

380912A1

GROMMET

2шт.

6

392058A1

HOSE ASSY.

2453 mm lg; Pressure

1шт.

7

366430A1

HOSE ASSY.

2492 mm lg; Lift; Left-Hand

1шт.

8

366514A1

HOSE ASSY.

2471 mm lgTilt; Left-Hand

1шт.

9

366513A1

HOSE ASSY.

2557 mm lg; Lift; Right-Hand

1шт.

10

366515A1

HOSE ASSY.

2547 mm lg; Tilt; Right-Hand

1шт.

11

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

12

391859A1

VALVE, CHECK

Incl. 13

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

14

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

2шт.

16

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

18

190119A1

COUPLING

Incl. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

20

392060A2

HOSE ASSY.

446 mm lg; Accumulator

1шт.

21

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 22, 23

1шт.

22

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

24

378076A1

ACCUMULATOR

See Figure 08-37

1шт.

25

391868A1

CLAMP

2шт.

26

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 29, 30

4шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

31

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl; Incl. 32

4шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

33

397547A1

FITTING

Incl. 34, 35

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

2шт.

35

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

36

397600A1

SWITCH

Incl. O-Ring; Pressure

1шт.
