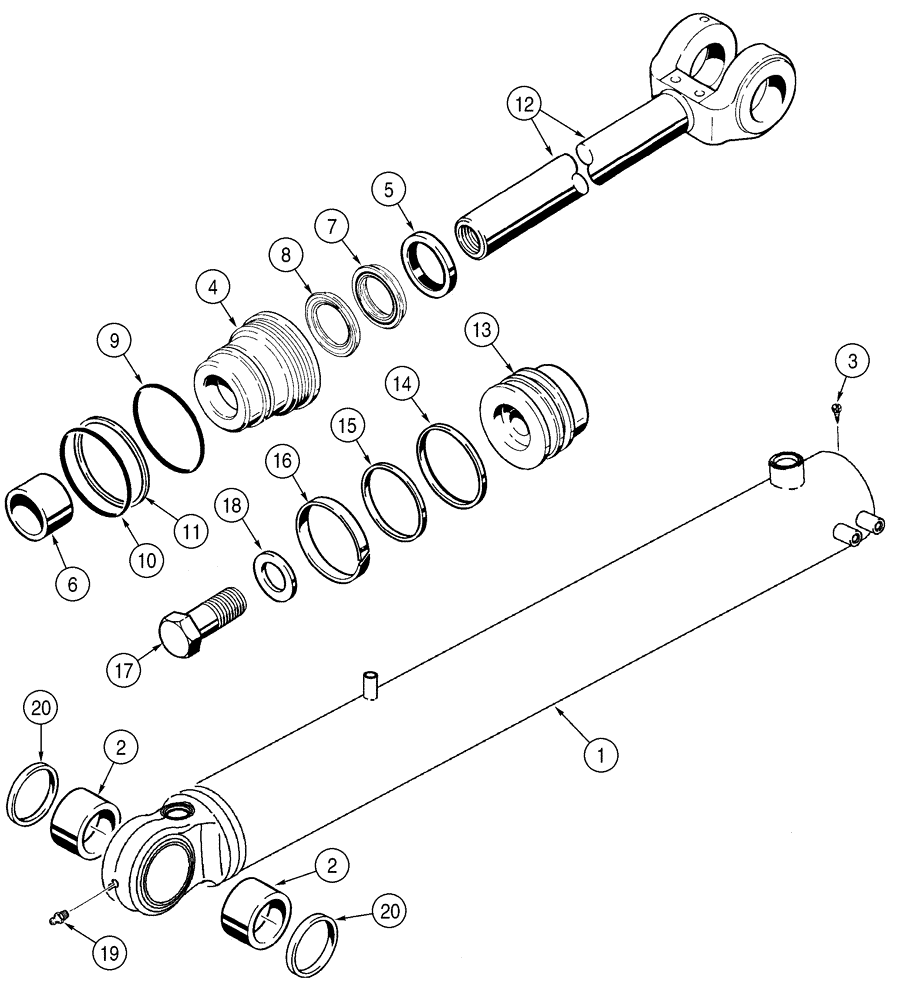

Запчасти Case 521D (08-30) - CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

XT LOADER

1шт.

368885A1

CYLINDER

95 ID x 923 mm strk; Bucket; Incl. 1 - 20

1шт.

1

357995A1

TUBE,92.35mm Bore Dia

Incl. 2

1шт.

2

NSS

NOT SOLD SEPARAT

Bushing

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

NSS

NOT SOLD SEPARAT

Gland; Cylinder; Incl. 4 - 10; Order Components

1шт.

4

358008A1

PACKING GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

336039A1

BUSHING

1шт.

358013A1

SEAL KIT

Seal; Incl. Ref 5 - 11, 14 - 16

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Seal; Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Seal; Buffer Seal

1шт.

9

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

10

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

12

368884A1

ROD

57 mm dia

1шт.

13

358012A1

PISTON ROD/GLAND

1шт.

14

364014A1

SEAL,92.13mm ID x 96.85mm OD x 6.96mm Thk

1шт.

15

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

1шт.

16

362691A1

RING

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

358013A1

SEAL KIT

Seal; Incl. Ref 5 - 11, 14 - 16

1шт.
