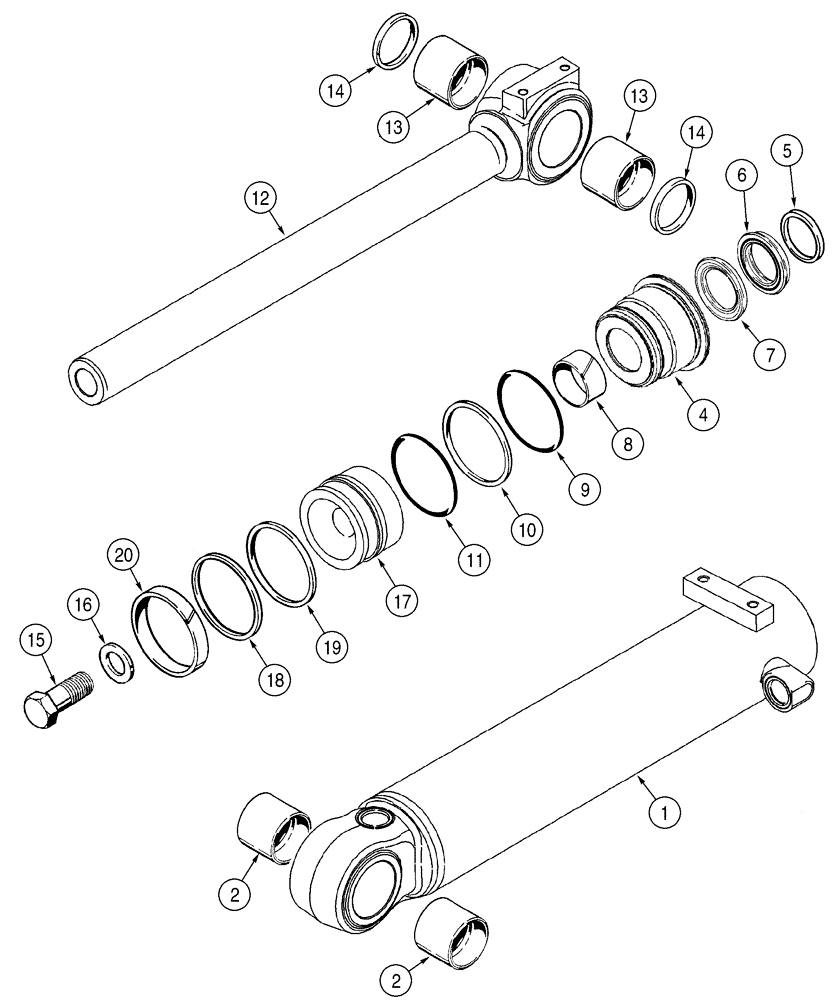

Запчасти Case 521D (08-29) - CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

Z-BAR LOADER

1шт.

336396A2

CYLINDER ASSY.

114 ID x 529 mm strk; Bucket; Incl. 1 - 20

1шт.

1

336395A1

TUBE,114.15 mm ID, 783.5 mm Length

Incl. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Not Illustrated

1шт.

336379A1

GLAND

Incl. 4 - 11; Order Components

1шт.

4

336378A1

GLAND

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seal; Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal; Buffer Seal

1шт.

8

336041A1

BUSHING

1шт.

9

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

10

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

11

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

12

336391A1

ROD ASSY.

63,5 mm dia; Incl. 13

1шт.

13

336388A1

BUSHING

2шт.

14

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

4шт.

360982A1

SEAL KIT

Seal; Incl. Ref 6 - 11, 14, 19, 20

1шт.

15

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1шт.

16

G104990

WASHER

1шт.

17

336376A1

PISTON

1шт.

18

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

1шт.

19

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

20

336045A1

RING

1шт.

360982A1

SEAL KIT

Seal; Incl. Ref 6 - 11, 14, 19, 20

1шт.
