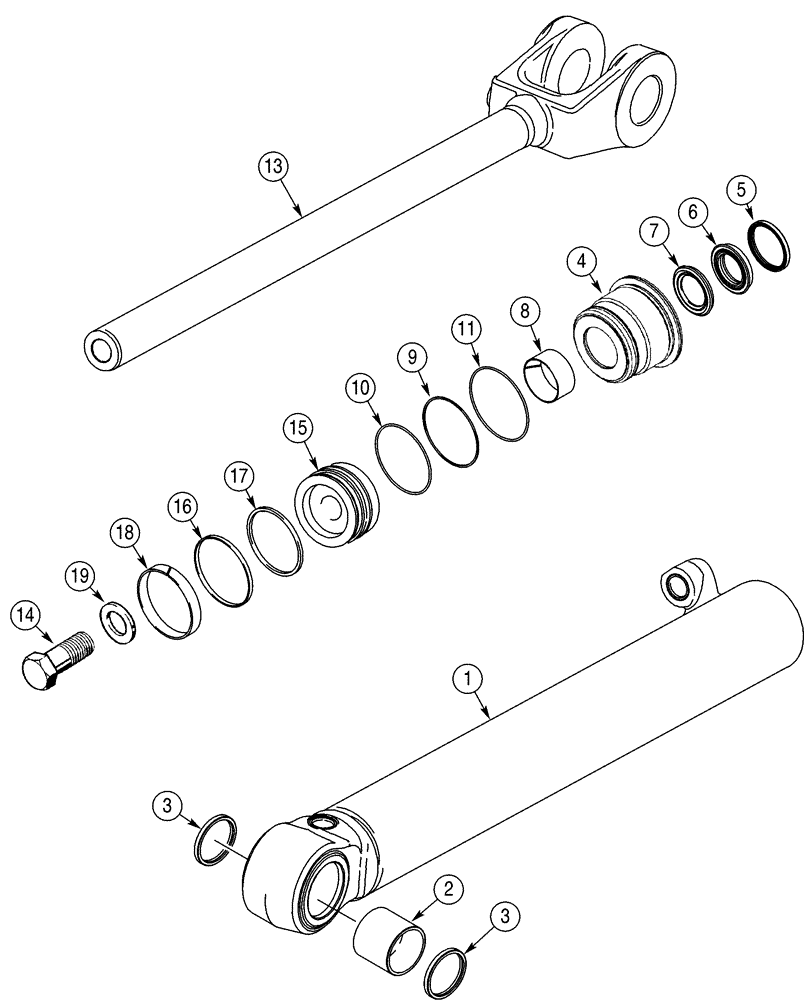

Запчасти Case 521D (08-28) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

337568A1

CYLINDER

102 ID x 783 mm strk; Lift; Incl. 1 - 19

2шт.

1

337567A1

TUBE,1015.7 mm Length

Incl. 2

1шт.

2

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

337557A1

GLAND

Incl. 4 - 11; Order Components

1шт.

4

337555A1

GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seal; Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal; Buffer Seal

1шт.

360979A1

SEAL KIT

Seal; Incl. 5-11, 16 - 18

1шт.

8

336039A1

BUSHING

1шт.

9

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

10

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

3-5/8 x 1/8

1шт.

11

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

12

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Not Illustrated

1шт.

13

337562A1

ROD

57 mm dia

1шт.

14

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

1шт.

337552A1

PISTON

Incl. 15 - 18

1шт.

15

337551A1

PISTON

1шт.

16

336027A1

SEAL,98.25mm ID x 102.97mm OD x 6.96mm Thk

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

1шт.

18

336044A1

RING

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

360979A1

SEAL KIT

Seal; Incl. Ref 5 - 11, 16 - 18

1шт.
