Запчасти Case 521D (08-19) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL (08) - HYDRAULICS

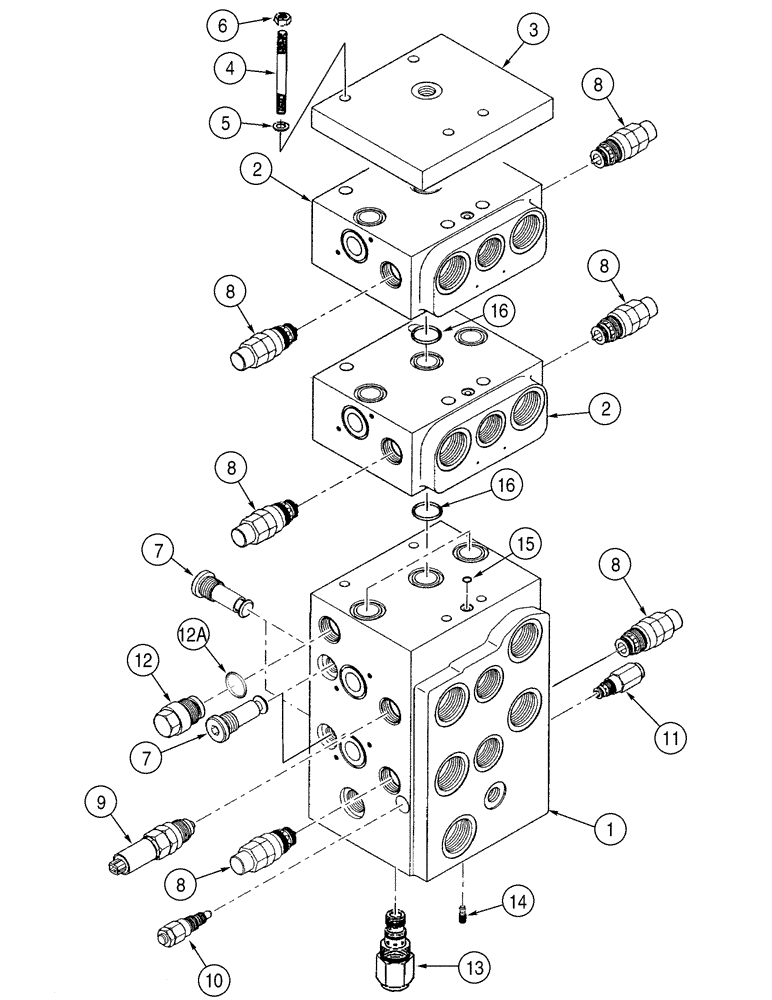

Схема запчастей Case 521D - (08-19) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL (08) - HYDRAULICS
10
8
5
1
4
13
8
11
7
12
16
8
2
7
15
8
12a
6
14
8
9
2
3
8
16

Артикул

Название

Примечание

Количество

Z-BAR LOADER

1шт.

377604A1

CONTROL VALVE

Four Spool; Incl. 1 - 16; Also Incl. 08-21, 08-22

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

411447A1

BLOCK

Spool; See Figure 08-22

1шт.

3

411445A1

PLATE

1шт.

4

411471A1

BOLT

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

7

411449A1

VALVE, CHECK

4шт.

8

411450A1

VALVE

Anticavitation Valve; Incl. 8A

6шт.

8a

411474A1

SEAL KIT

Seal; Not Illustrated

1шт.

9

411451A1

VALVE

Anticavitation Valve; Incl. 9A

1шт.

9a

411475A1

SEAL KIT

Seal; Not Illustrated

1шт.

10

411452A1

VALVE

Incl. 10A

1шт.

10a

411476A1

SEAL KIT

Seal; Not Illustrated

1шт.

11

411453A1

VALVE

Flow Limiting Valve; Incl. 11A

1шт.

11a

411477A1

SEAL KIT

Seal; Not Illustrated

1шт.

12

411454A1

INSERT

Pilot Pressure; Incl. 12A

1шт.

12a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

13

411455A1

VALVE

Flow Limiting Valve; Incl. 13A

1шт.

13a

411478A1

SEAL KIT

Seal; Not Illustrated

1шт.

14

411456A1

VALVE

1шт.

411461A1

SEAL KIT

Seal; Incl. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

Выбрано товаров: 25
