Запчасти Case 521D (08-18) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (08) - HYDRAULICS

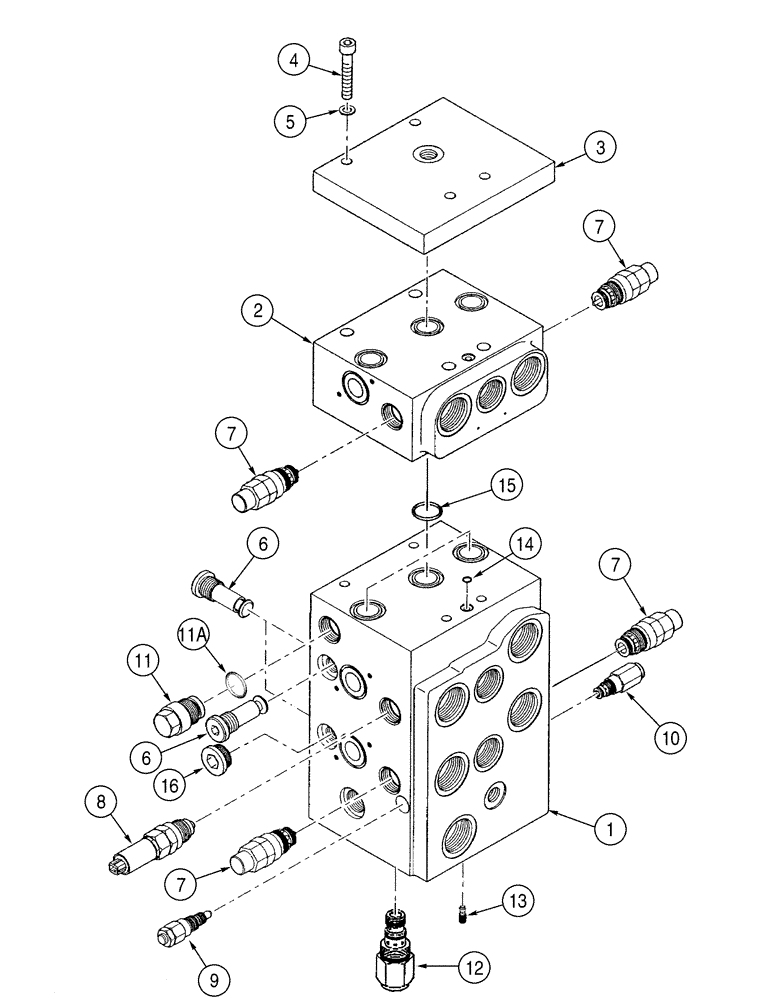

Схема запчастей Case 521D - (08-18) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (08) - HYDRAULICS
9
11a
2
11
5
3
7
4
14
6
15
7
7
12
16
8
7
13
6
10
1

Артикул

Название

Примечание

Количество

XT LOADER

1шт.

377606A1

VALVE, CONTROL

Three Spool; Incl. 1 - 16; Also Incl. 08-21, 08-22

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

411447A1

BLOCK

Spool; See Figure 08-22

1шт.

3

411445A1

PLATE

1шт.

4

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

411449A1

VALVE, CHECK

4шт.

7

411450A1

VALVE

Anticavitation Valve; Incl. 7A

4шт.

7a

411474A1

SEAL KIT

Seal; Not Illustrated

1шт.

8

411451A1

VALVE

Anticavitation Valve; Incl. 8A

1шт.

8a

411475A1

SEAL KIT

Seal; Not Illustrated

1шт.

9

411452A1

VALVE

Incl. 9A

1шт.

9a

411476A1

SEAL KIT

Seal; Not Illustrated

1шт.

10

411453A1

VALVE

Flow Limiting Valve; Incl. 10A

1шт.

10a

411477A1

SEAL KIT

Seal; Not Illustrated

1шт.

11

411454A1

INSERT

Pilot Pressure; Incl. 11A

1шт.

11a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

12

411455A1

VALVE

Flow Limiting Valve; Incl. 12A

1шт.

12a

411478A1

SEAL KIT

Seal; Not Illustrated

1шт.

13

411456A1

VALVE

1шт.

411461A1

SEAL KIT

Seal; Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

16

221578A1

PLUG,M18 x 1.5 ORB

1шт.

Выбрано товаров: 25
