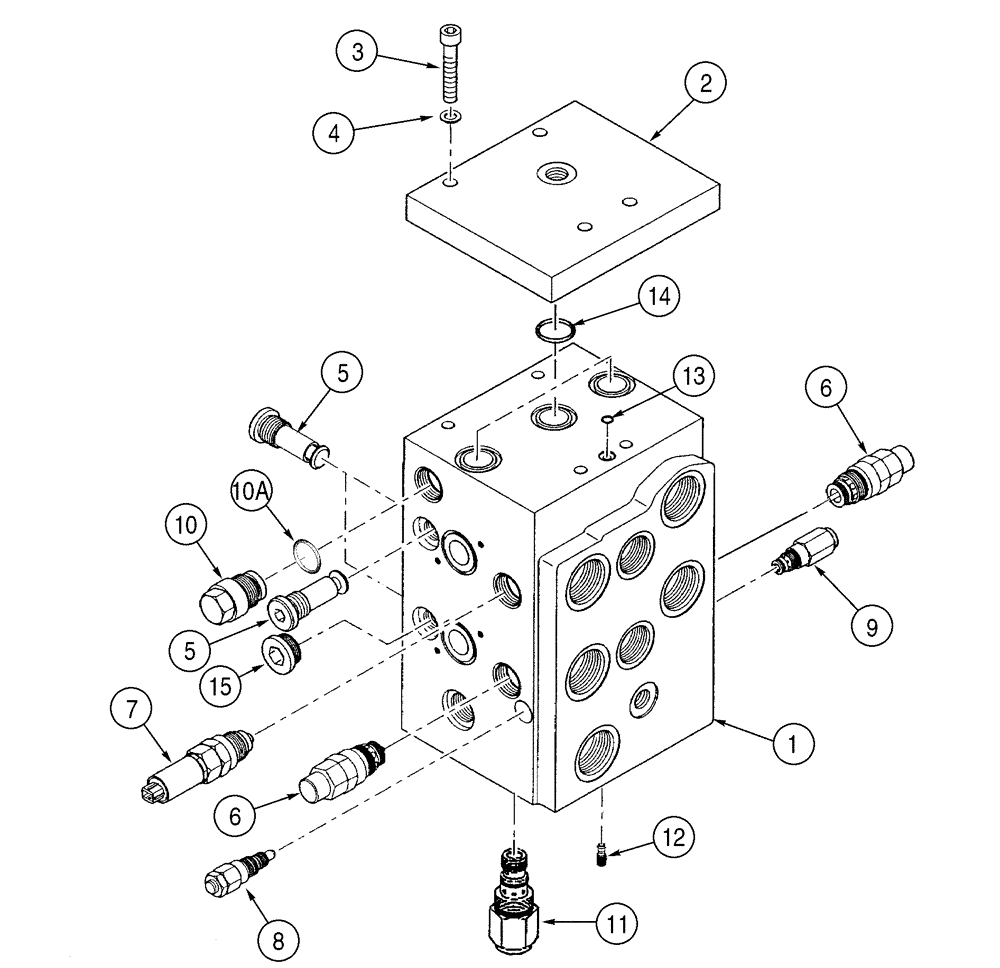

Запчасти Case 521D (08-16) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (08) - HYDRAULICS

XT LOADER

1шт.

377605A1

VALVE, CONTROL

Two Spool; Incl. 1 - 15; Also Incl. 08-21

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

411445A1

PLATE

1шт.

3

962-8035

M8 x 35; 10.9

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

411449A1

VALVE, CHECK

3шт.

6

411450A1

VALVE

Anticavitation Valve; Incl. 6A

2шт.

6a

411474A1

SEAL KIT

Seal; Not Illustrated

1шт.

7

411451A1

VALVE

Anticavitation Valve; Incl. 7A

1шт.

7a

411475A1

SEAL KIT

Seal; Not Illustrated

1шт.

8

411452A1

VALVE

Incl. 8A

1шт.

8a

411476A1

SEAL KIT

Seal; Not Illustrated

1шт.

9

411453A1

VALVE

Flow Limiting Valve; Incl. 9A

1шт.

9a

411477A1

SEAL KIT

Seal; Not Illustrated

1шт.

10

411454A1

INSERT

Pilot Pressure; Incl. 10A

1шт.

10a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

11

411455A1

VALVE

Flow Limiting Valve; Incl. 11A

1шт.

11a

411478A1

SEAL KIT

Seal; Not Illustrated

1шт.

12

411456A1

VALVE

1шт.

411461A1

SEAL KIT

Seal; Incl. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

15

221578A1

PLUG,M18 x 1.5 ORB

1шт.
