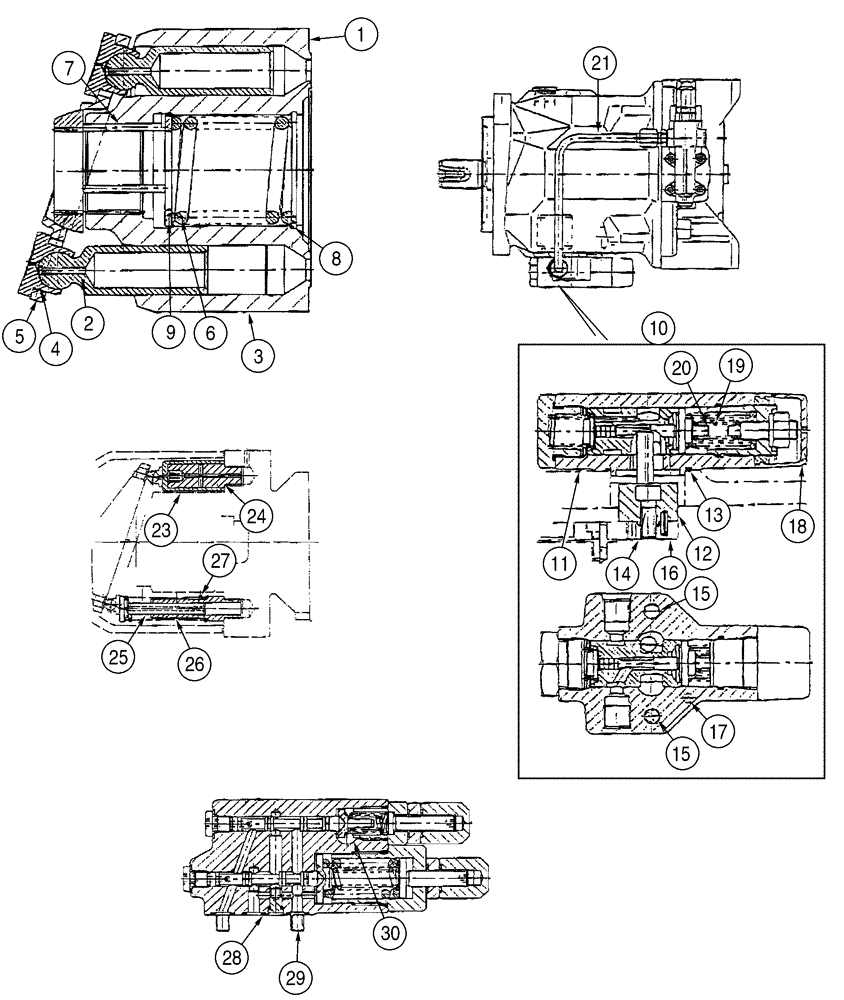

Запчасти Case 521D (08-14) - PUMP ASSY (08) - HYDRAULICS

406345A1

PUMP

Replaced By 406345A2

1шт.

87436172R

REMAN-HYD PUMP

521D BEFORE S/N JEE0135500, Reman for New P/N 406345A1

1шт.

87436172C

CORE-INJECTION PUMP

Return Number

1шт.

406345A2

PUMP

Case Drain Size Increased; Torque Limiting Set To 2300 PSI @ 2000 RPM; Replaced By 406345A3

1шт.

87436172R

REMAN-HYD PUMP

521D BEFORE S/N JEE0135500), Reman for New P/N 406345A2

1шт.

87436172C

CORE-INJECTION PUMP

Return Number

1шт.

406345A3

PUMP

Torque Limiting Set To 1725 PSI @ 2000 RPM; Replaced By 406345A4

1шт.

87436172R

REMAN-HYD PUMP

521D BEFORE S/N JEE0135500, Reman for New P/N 406345A3

1шт.

87436172C

CORE-INJECTION PUMP

Return Number

1шт.

1

409869A1

PLATE

1шт.

2

410034A1

PISTON

9шт.

3

410036A1

CYLINDER

1шт.

4

410037A1

PLATE

1шт.

5

410038A1

BALL RACE

1шт.

6

410039A1

SPRING

1шт.

7

410040A1

PIN

3шт.

8

410041A1

RING

1шт.

9

410042A1

THRUST WASHER

1шт.

10

409867A1

PILOT VALVE

Incl. 11 - 20

1шт.

11

410058A1

PILOT VALVE

1шт.

12

410059A1

CARRIER

1шт.

13

410060A1

O-RING

1шт.

14

410061A1

HEX SOC SCREW

1шт.

15

410062A1

HEX SOC SCREW

2шт.

16

410063A1

PIN

1шт.

17

410064A1

PIN

1шт.

18

410065A1

CAP

1шт.

19

410622A1

SPRING

1шт.

20

410621A1

SPRING

1шт.

21

409868A1

TUBE

1шт.

22

NSS

NOT SOLD SEPARAT

Decal; Not Illustrated

1шт.

410049A1

CONTROL

Incl. 23 - 27

1шт.

23

410050A1

PISTON

1шт.

24

410051A1

GUIDE

Piston

1шт.

25

410052A1

PISTON

1шт.

26

410053A1

GUIDE

Piston

1шт.

27

410057A1

SPRING

1шт.

410998A1

PILOT VALVE

Incl. 28 - 30

1шт.

28

410995A1

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.

29

410996A1

HEX SOC SCREW,M6 x 30mm, Cl 10.9

M6 x 30; 10.9

4шт.

30

411000A1

PLUG

7/16

1шт.
