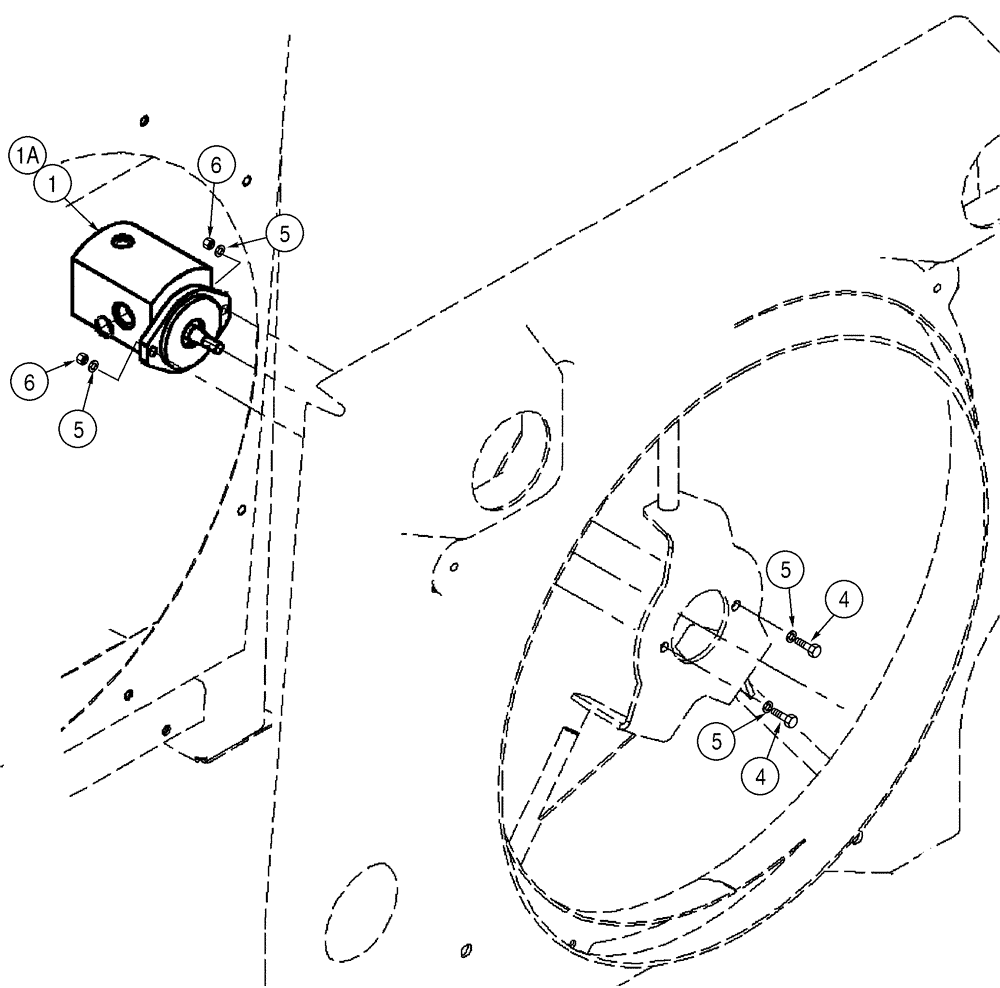

Запчасти Case 521D (02-07) - COOLING SYSTEM - MOTOR, DRIVE (02) - ENGINE

1

400336A1

HYDRAULIC MOTOR

Fan Drive; Standard; Incl. Ref 2, 3

1шт.

87426773R

REMAN-HYD MOTOR

521D (BEFORE S/N JEE0135500) Reman For New P/N 400336A1

1шт.

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

400337A1

MOTOR, HYDRAULIC

Fan Drive; Reversible; Incl. Ref 2, 3

1шт.

2

410071A1

SEAL

Not Illustrated

1шт.

3

410070A1

SEAL KIT

Seal; Component Parts Not Services Separately; Not Illustrated

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
