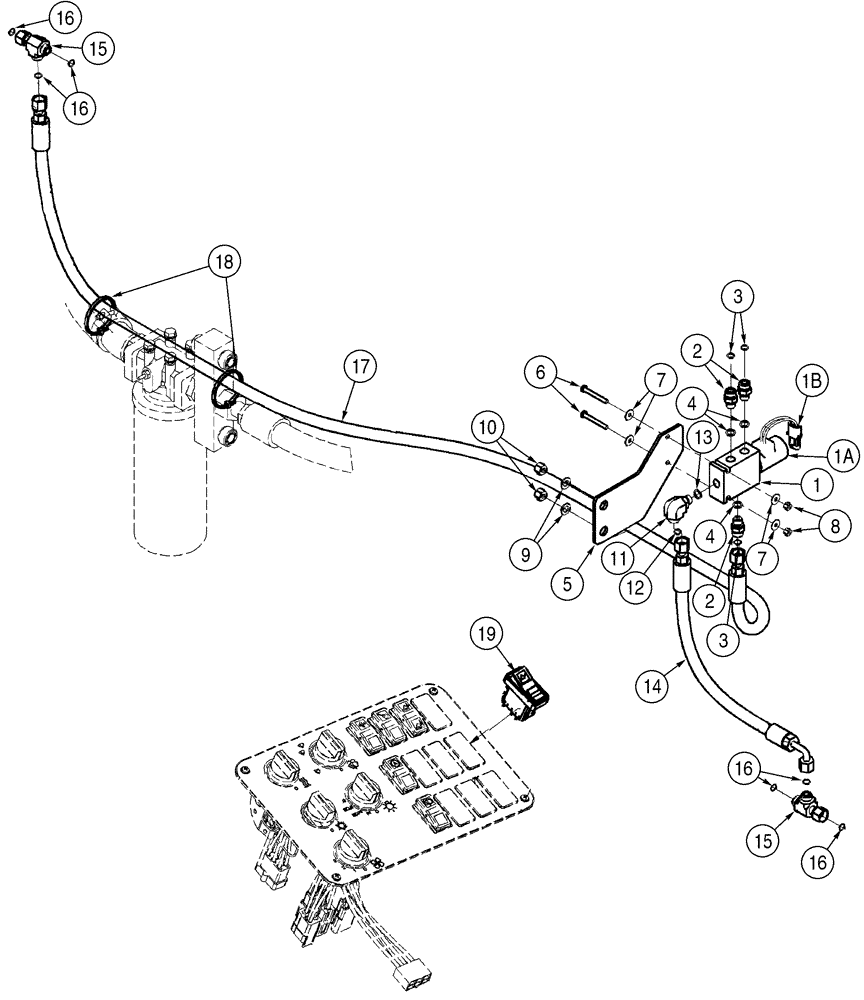

Запчасти Case 521D (08-11) - HYDRAULICS - COUPLER LOCKING (08) - HYDRAULICS

379139A1

SOLENOID VALVE

Coupler Locking; Incl. 1, 1A, 1B

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1b

124637A1

SOLENOID

Includes 124639A1 Seal Kit; Assembly No Longer Includes 124638A1 Solenoid, Purchase Separately

1шт.

1c

NSS

NOT SOLD SEPARAT

Coil

1шт.

2

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3, 4

3шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

5

379229A1

BRACKET

1шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 12, 13

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

14

393126A1

HOSE ASSY.

483 mm (19 in); Pressure

1шт.

15

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 16

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

3шт.

17

393153A1

HOSE ASSY.

2106 mm (82-7/8 in); Coupler

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

19

364444A2

SWITCH

Pin Engage

1шт.

20

A149799

FUSE

7,5 amp; Not Illustrated

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
