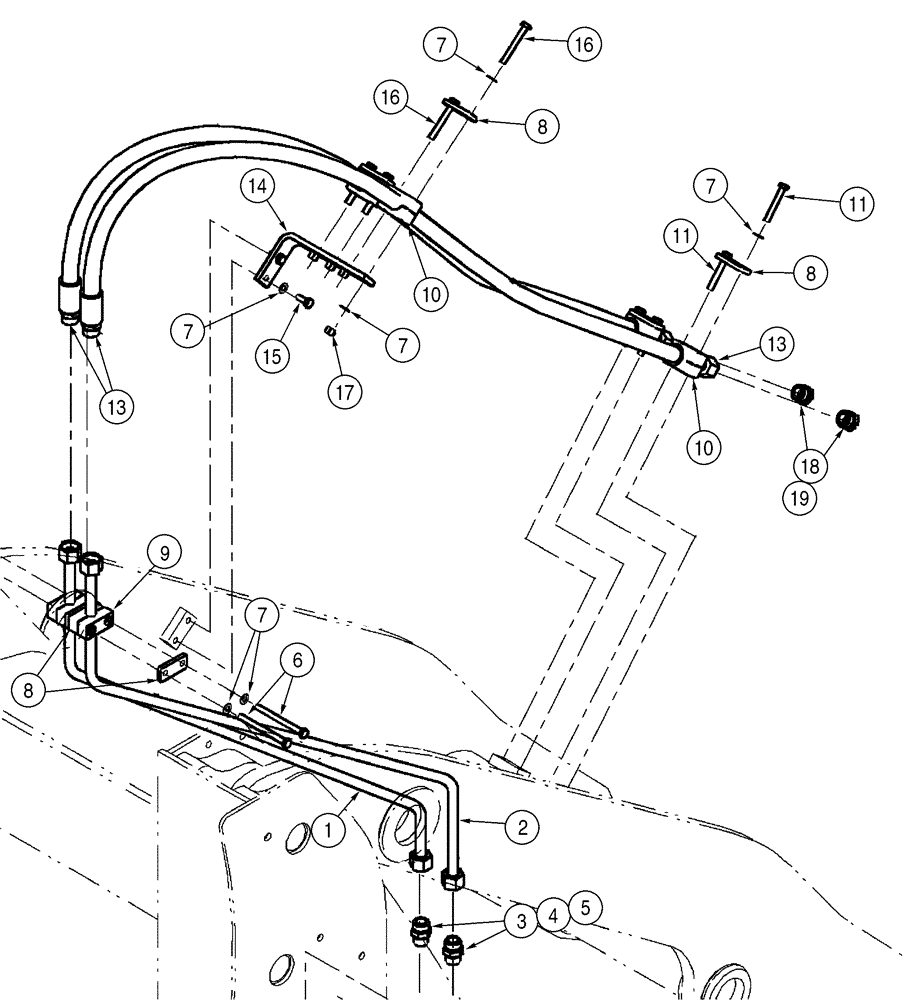

Запчасти Case 521D (08-10) - HYDRAULICS - LOADER AUXILIARY (08) - HYDRAULICS

XT Loader, Four Spool

1шт.

1

404672A1

TUBE

Left Hand

1шт.

2

404678A1

TUBE

Right Hand

1шт.

3

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 4, 5

2шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

6

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

8

367658A1

PLATE

6шт.

9

379374A1

BLOCK

Mounting

2шт.

10

372453A1

BLOCK

Mounting

4шт.

11

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

12

391239A1

HOSE ASSY.

2269 mm (89-5/16 in); Incl. 13

2шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

2шт.

14

373040A1

BRACKET

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

16

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. 19

2шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.
