Запчасти Case 521D (08-07) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

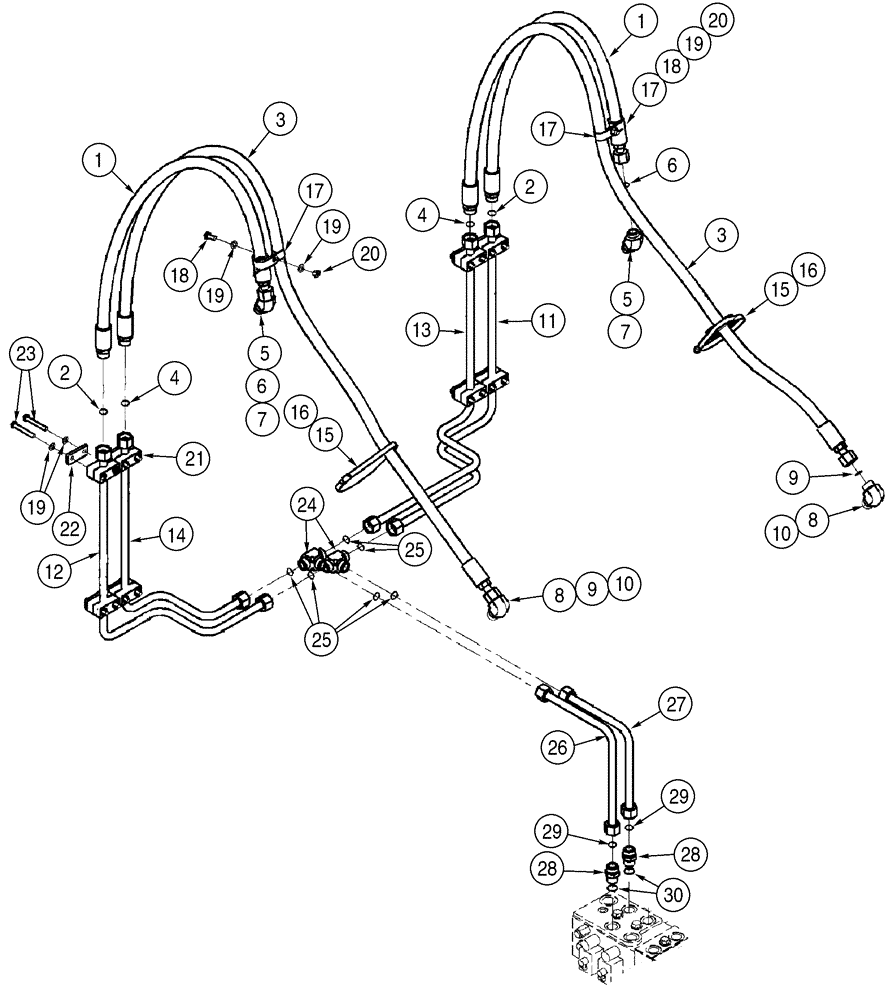

Схема запчастей Case 521D - (08-07) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS
17
10
26
29
4
25
23
29
17
2
9
15
30
20
16
27
14
16
19
24
9
28
12
19
22
1
8
19
7
3
25
6
7
20
5
3
15
13
11
18
4
2
5
28
17
1
8
6
21
18
19
10

Артикул

Название

Примечание

Количество

Loader Bucket, Z-Bar Loader

1шт.

1

391260A1

HOSE ASSY.

1308 mm (51-1/2 in); Closed End; Incl. 2

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

3

391261A1

HOSE ASSY.

2315 mm (91-1/8 in); Rod End; Incl. 4

2шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

5

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb; Incl. 6, 7

2шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss End

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 9, 10

2шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

11

404355A1

TUBE

Left Hand; Closed End

1шт.

12

404357A1

TUBE

Right Hand; Closed End

1шт.

13

404359A1

TUBE

Left Hand; Rod End

1шт.

14

404361A1

TUBE

Right Hand; Rod End

1шт.

15

367533A1

CLAMP

2шт.

16

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

4шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

379374A1

BLOCK

Mounting

8шт.

22

367658A1

PLATE

8шт.

23

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

16шт.

24

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1-3/16 fc sl; Incl. 25

2шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

3шт.

26

404353A1

TUBE

Closed End

1шт.

27

404363A1

TUBE

Rod End

1шт.

28

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 29, 30

2шт.

29

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

30

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 31
