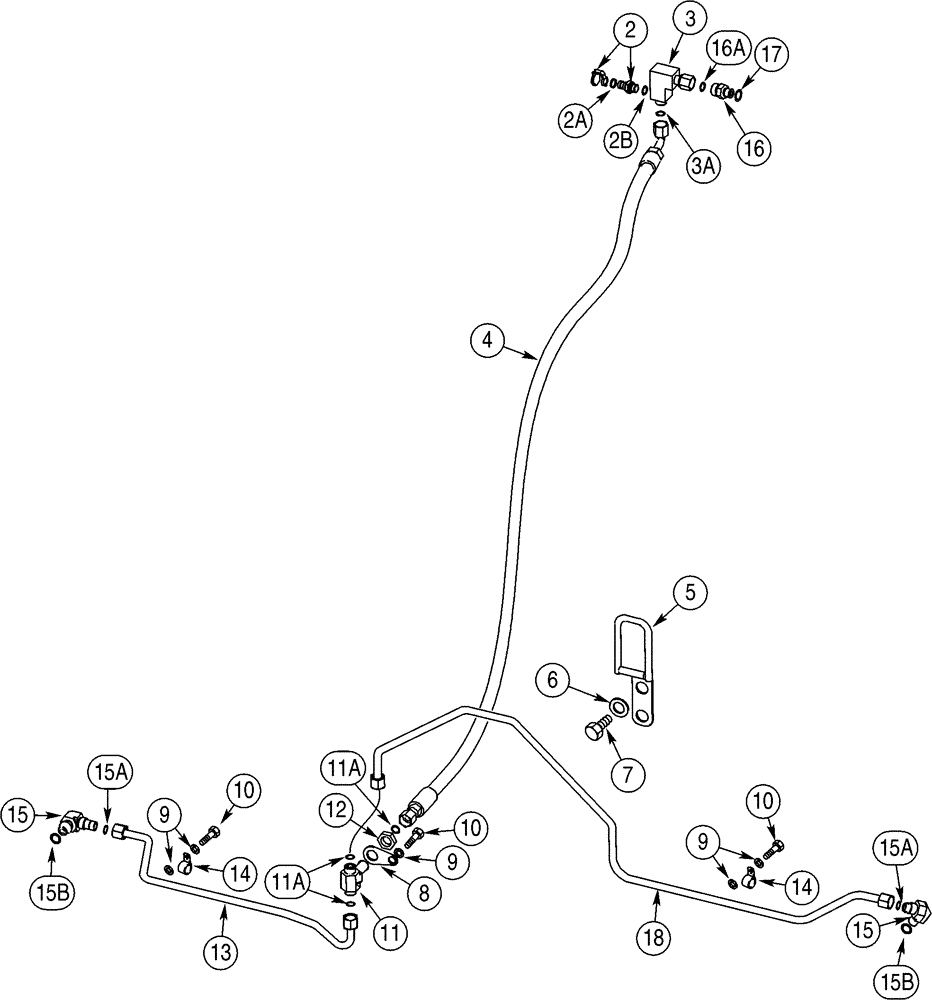

Запчасти Case 521D (07-07) - HYDRAULICS - BRAKE, MAIN (MAIN BRAKE VALVE TO REAR AXLE) (07) - BRAKES

REF

INSTRUCTION

MAIN BRAKE VALVE TO REAR AXLE

1шт.

1

414084A1

VALVE

Main Brake Valve; Not Illustrated; Component Parts Not Available At Time Of Printing

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref 2A, 2B

1шт.

2a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

3

377754A1

FITTING

Incl. Ref 3A

1шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

4

367869A1

HOSE ASSY.

1674 mm lg; Rear Brakes

1шт.

5

408004A1

GUARD ASSY.

1шт.

6

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

2шт.

7

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

2шт.

8

379752A1

BRACKET

1шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

11

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref 11A

1шт.

11a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

12

701-903

NUT,13/16" - 16

1шт.

13

387713A2

TUBE

Rear Axle; Left-Hand

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

15

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref 15A, 15B

2шт.

15a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

15b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. Ref 16, 16A, 17

1шт.

16

182606A1

HYD CONNECTOR

Fitting; Incl. Ref 16A

1шт.

16a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

143349A1

DUST CAP

Dust

1шт.

18

387711A2

TUBE

Rear Axle; Right-Hand

1шт.
