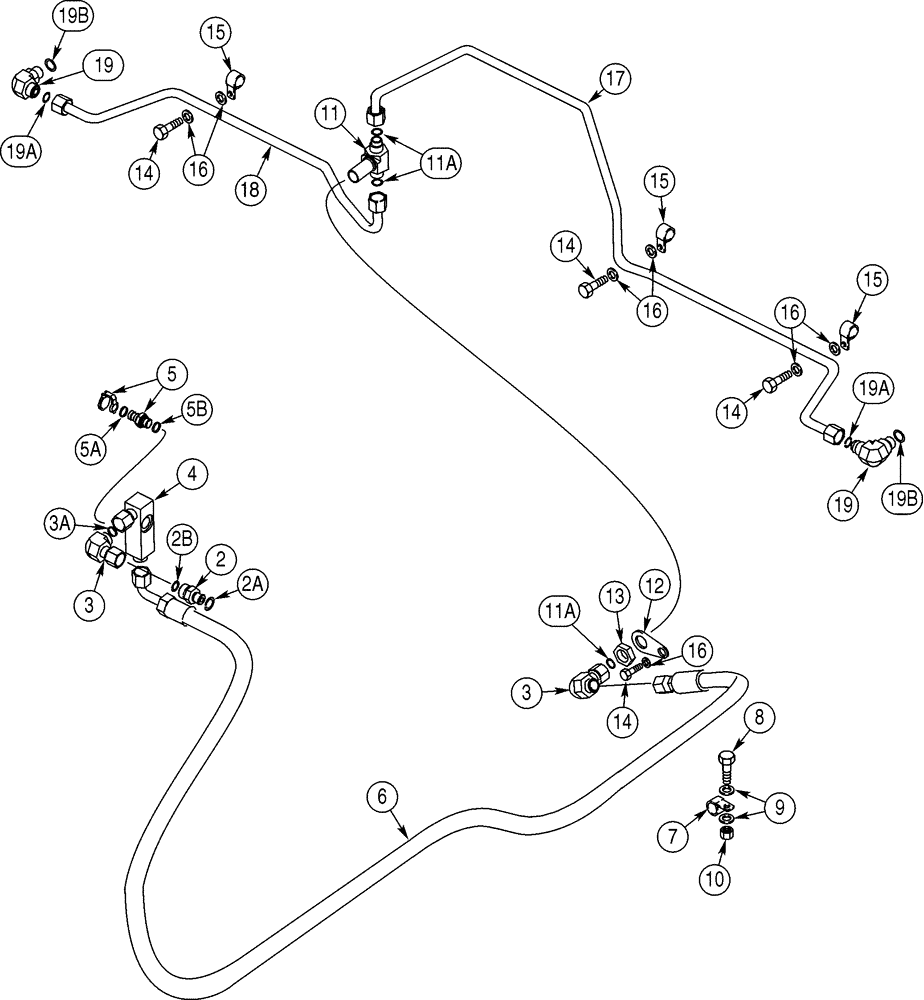

Запчасти Case 521D (07-06) - HYDRAULICS - BRAKE, MAIN (MAIN BRAKE VALVE TO FRONT AXLE) (07) - BRAKES

1

414084A1

VALVE

Main Brake Valve; Not Illustrated; Component Parts Not Available At Time Of Printing

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. Ref 2A, 2B

1шт.

2a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref 3A

2шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

4

372031A3

FITTING

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. Ref 5 - 5B

1шт.

5

182606A1

HYD CONNECTOR

Fitting; Incl. Ref 5A

1шт.

5a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5b

143349A1

DUST CAP

Dust

1шт.

6

413384A1

HOSE ASSY.

2494 mm lg; Front Brakes

1шт.

7

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. Ref 11A

1шт.

11a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

12

379752A1

BRACKET

1шт.

13

701-903

NUT,13/16" - 16

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

17

387707A2

TUBE

Front Axle; Right-Hand

1шт.

18

387709A2

TUBE

Front Axle; Left-Hand

1шт.

19

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref 19A, 19B

2шт.

19a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

19b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
