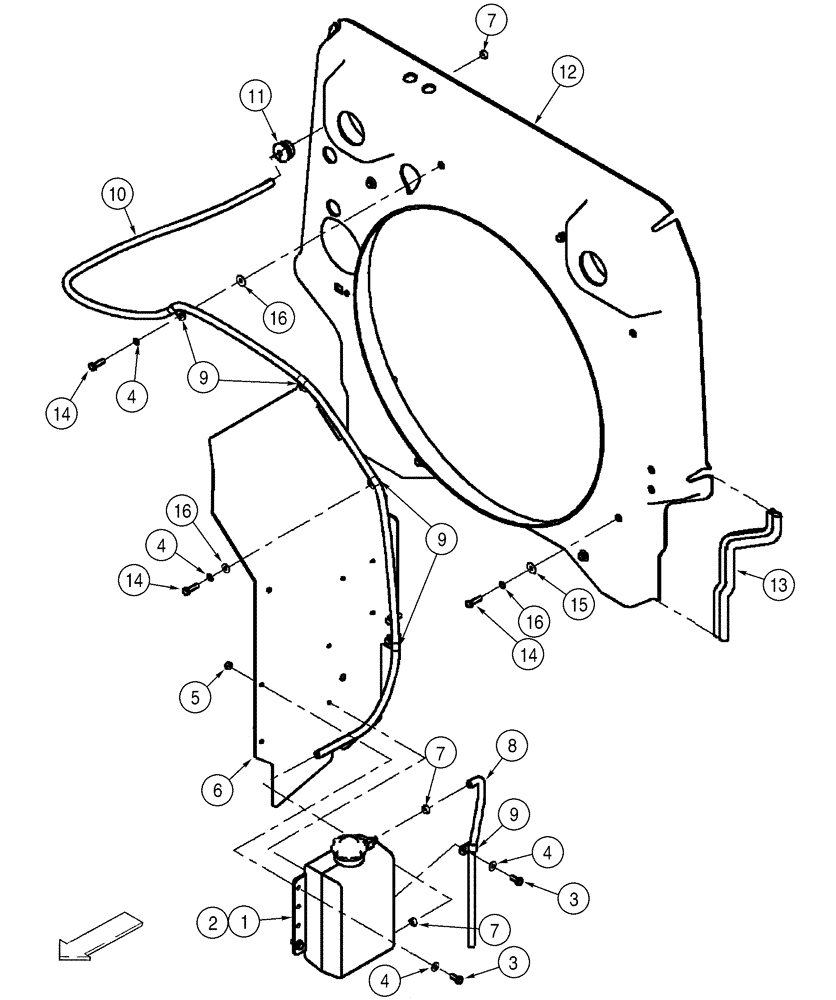

Запчасти Case 521D (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

103846A1

CONTAINER

1шт.

2

1547924C1

CAP

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

6

399708A1

GUARD

Fan

1шт.

7

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

8

396120A1

HOSE,7.9mm ID x 495.3mm L

Reservoir, Drain

1шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

5шт.

10

366664A1

HOSE,7.9 mm ID x 2260.60 mm

2260 mm (89 in); Coolant Recovery

1шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2" ID

1шт.

12

402616A2

SHROUD

1шт.

13

383541A1

RUBBER SEAL,464mm L

2шт.

15

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

6шт.

16

892-11008

LOCK WASHER,8mm ID

10шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

10шт.
