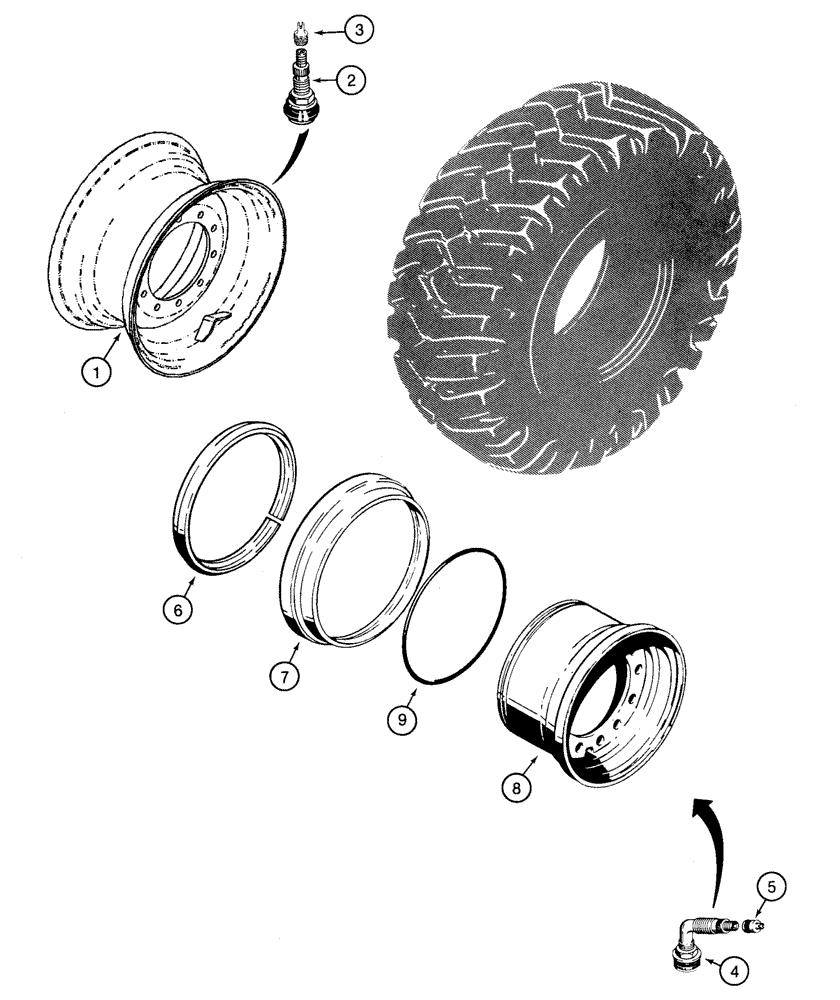

Запчасти Case 521D (06-38) - WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

FOR 15.5 x 25 TIRES - ONE PIECE WHEEL

1шт.

1

361746A2

RIM

WHEEL WHEEL, 15,5 x 25; If Used; Purchase Tire Locally

4шт.

2

A20058

VALVE STEM

Incl. Ref 3

4шт.

3

L19664

VALVE STEM

Cap

4шт.

REF

INSTRUCTION

FOR 17.5 x 25 TIRES - THREE PIECE WHEEL

1шт.

4

L48133

VALVE STEM

Incl. Ref 5

4шт.

5

L19664

VALVE STEM

Cap

1шт.

392841A1

WHEEL ASSY.

Incl. Ref 6 - 8; If Used; Purchase Tire Locally

4шт.

6

A19100

LOCKING RING

Locking

1шт.

7

A19099

RING

Side

1шт.

Side

1шт.

8

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

9

A19101

O-RING,6.6mm Thk x 590.55mm ID

4шт.
