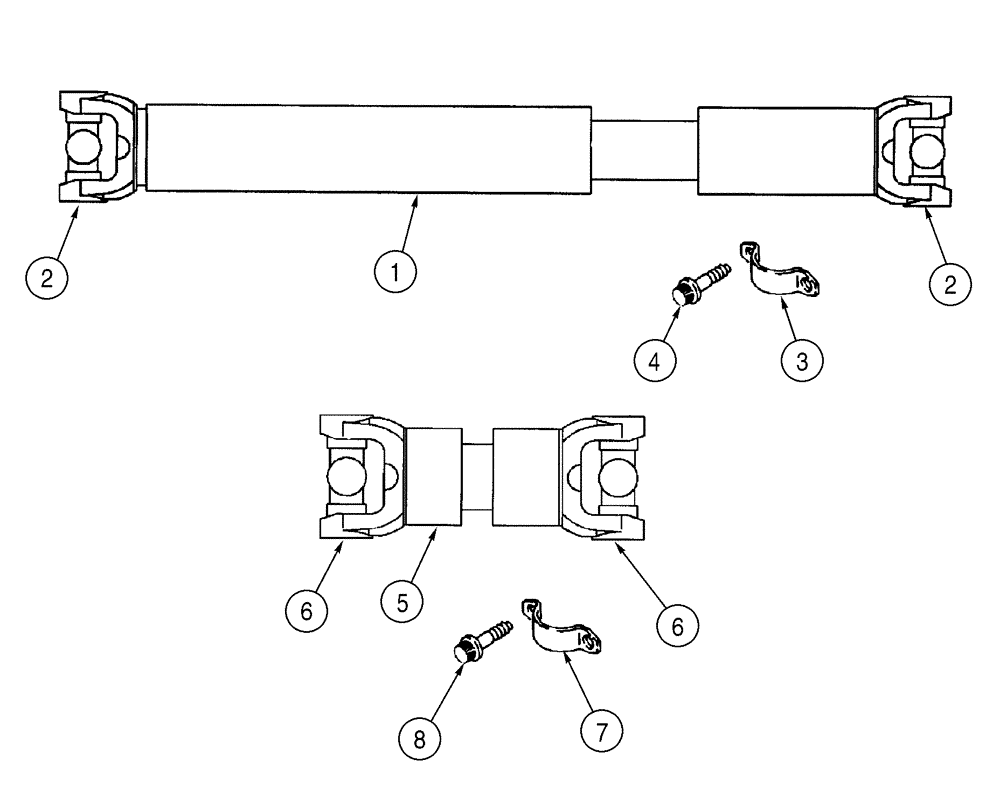

Запчасти Case 521D (06-37) - DRIVE SHAFT, CENTER AND REAR (06) - POWER TRAIN

REF

INSTRUCTION

CENTER DRIVE SHAFT

1шт.

372360A1

DRIVE SHAFT

Incl. Ref 2

1шт.

2

403572A1

SPIDER ASSY.

2шт.

3

L116943

SECURING STRAP

Bearing Strap

4шт.

4

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

8шт.

REF

INSTRUCTION

REAR DRIVE SHAFT

1шт.

5

352066A1

DRIVE SHAFT

Incl. Ref 6

1шт.

6

403572A1

SPIDER ASSY.

2шт.

7

L116943

SECURING STRAP

Bearing Strap

4шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

8шт.
