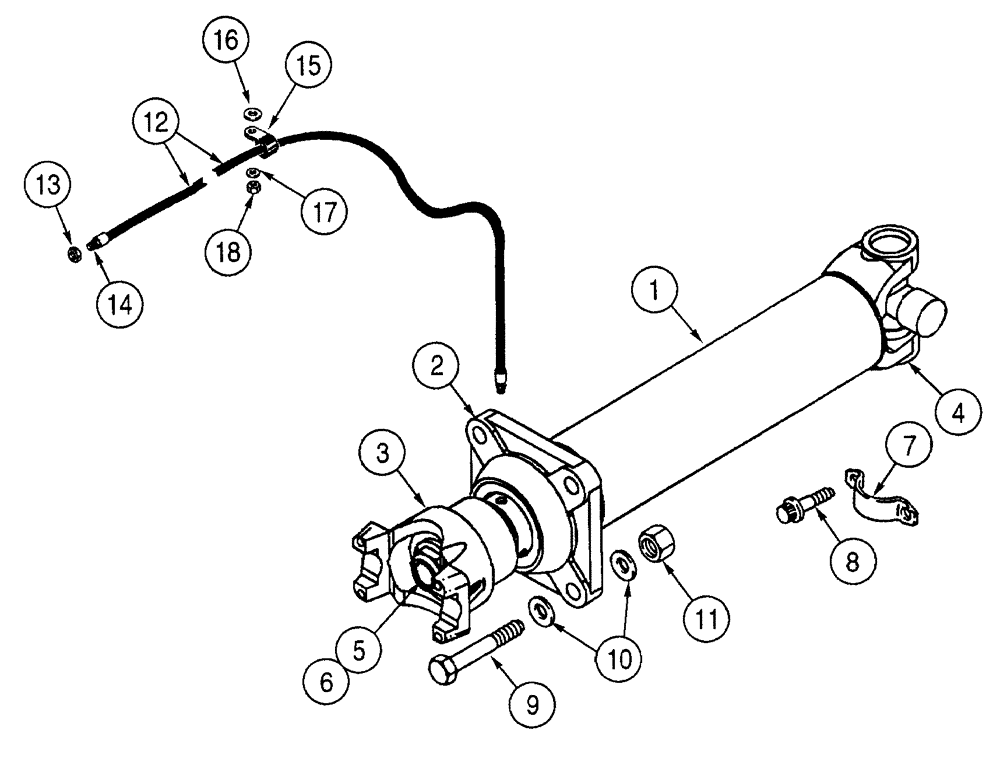

Запчасти Case 521D (06-36) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (06) - POWER TRAIN

1

388304A2

DRIVE SHAFT

Front; Incl. Ref 2 - 6

1шт.

2

361423A2

BEARING CARRIER

1шт.

3

391765A1

YOKE

Flange, Drive Shaft to Center Bearing

1шт.

4

403572A1

SPIDER ASSY.

1шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

6

215617R1

LOCK NUT

1шт.

7

L116943

SECURING STRAP

Bearing Strap

2шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. Ref 13

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

15

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
