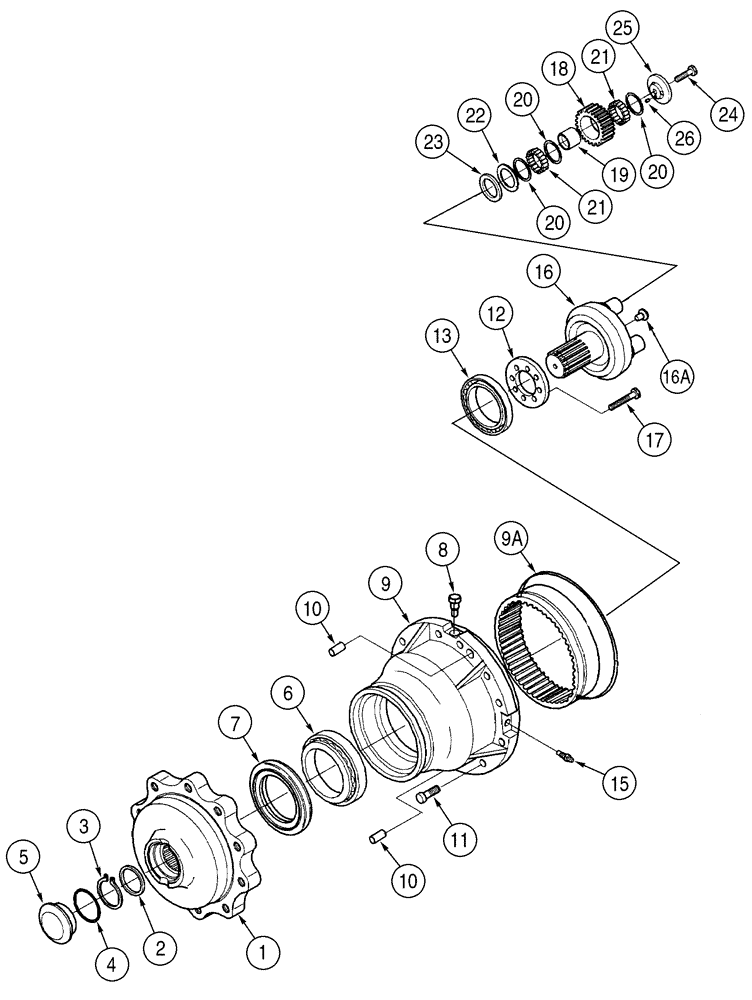

Запчасти Case 521D (06-33) - AXLE, REAR - HUB, PLANETARY (06) - POWER TRAIN

389964A2

AXLE, REAR

AXLE REAR Open Differential; Carraro No. 143841; Includes Figures 06-29 - 06-33

1шт.

319777A2

AXLE, REAR

AXLE REAR Limited Slip; Carraro No. 140091; Includes Figures 06-29 - 06-33

1шт.

1

361158A1

FLANGE

2шт.

2

386567A1

WASHER

2шт.

3

358654A1

RING, SNAP,65.5mm ID, Ext

RING SNAP

2шт.

4

386566A1

O-RING

2шт.

5

381809A1

PLUG

1шт.

6

U1139852

BEARING

Outer

2шт.

7

371146A1

SEAL

2шт.

8

403956A1

PLUG

M18 x 1,5

2шт.

404050A1

HUB

Kit; Left-Hand Rear; Incl. Ref 9, 9A

1шт.

404051A1

HUB

Kit; Right-Hand Rear; Incl. Ref 9, 9A

1шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

9a

NSS

NOT SOLD SEPARAT

Gear

1шт.

10

D142890

DOWEL

M16 x 40

4шт.

11

403955A1

BOLT

M14 x 45

24шт.

12

367001A1

RETAINER

2шт.

13

371148A1

ROLLER BEARING

Inner

2шт.

14

238-5279

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

2шт.

15

E135810

VENTING SCREW

2шт.

404049A1

CARRIER

Service Kit; Incl. Ref 16, 16A

2шт.

16

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

16a

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

17

386565A1

BOLT

M12 x 55

16шт.

18

412499A1

GEAR

Planetary

6шт.

19

412502A1

BUSHING

6шт.

20

412500A1

SPACER

18шт.

21

412496A1

BEARING, NEEDLE

468шт.

22

412680A1

THRUST WASHER

6шт.

23

412497A1

THRUST WASHER

6шт.

24

139109A1

BOLT,Self Lkg, Hex, M12 x 40mm

M12 x 40

6шт.

25

412681A1

RETAINER

6шт.

26

412501A1

NEEDLE

M7 x 10

6шт.
